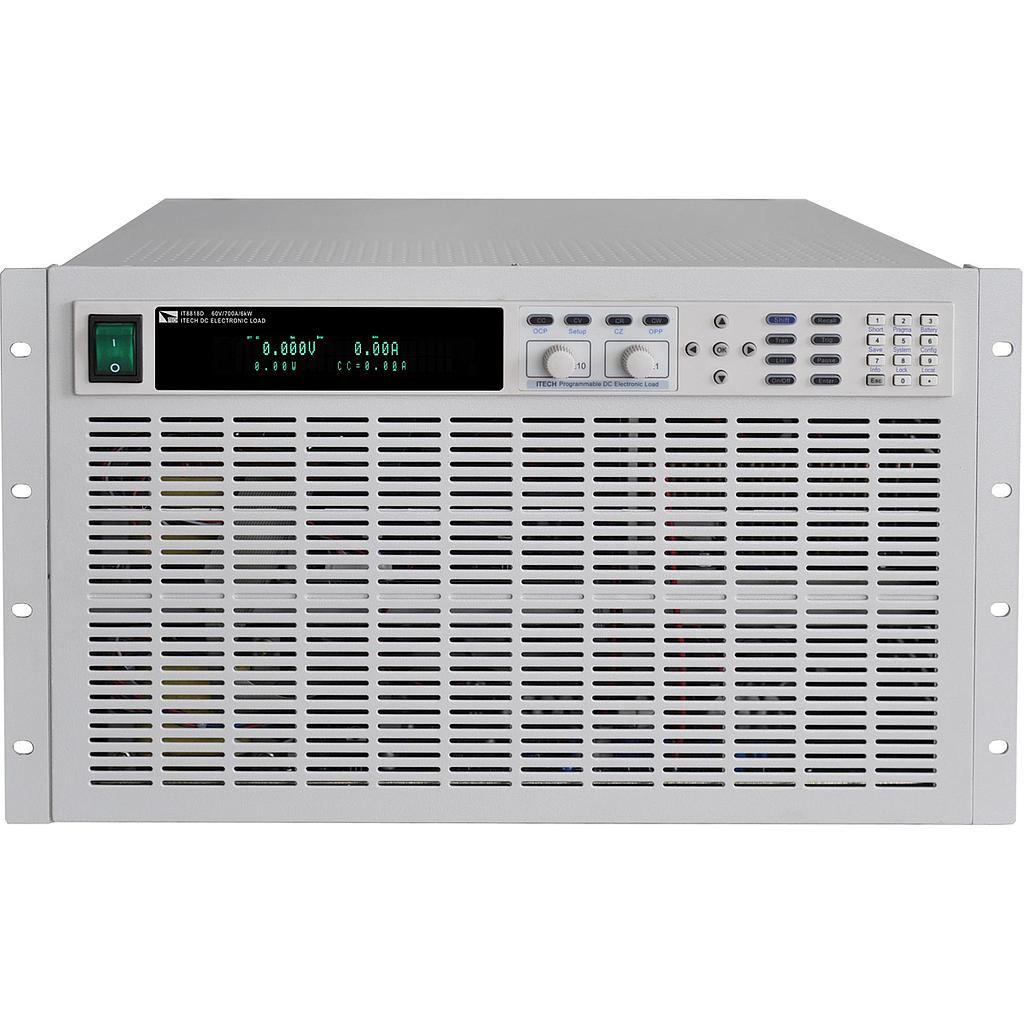

Itech IT8814B大功率直流电子负载(0-500V; 0-60A; 1200W)

- Input:
+ Voltage: 0-500V
+ Power: 1200 W
+ Current: 0-60A
-Dimension: 439 x 133.3 x 580 mm

Details

datasheet

Widely power range:150W~600KW
Dynamic mode: up to 25 KHz
Measurement resolution:0.1mv,0.01ma
Measurement speed: up to 50KHz ·Adjustable current rising slope:0.001A/us~2.5A/us
Dynamic test, auto-test,short-circuit test function
Rotary knob, making the operation more easier
Power off memory function
CR-LED test,OCP/OPP test,Voltage rising speed test,Battery test function
External analog control
Support VISA/USBTMC/SCPI communication protocol
Built-in RS232/USB/GPIB communication interface
Four operation mode:CC/CV/CW/CR
Remote sensing
