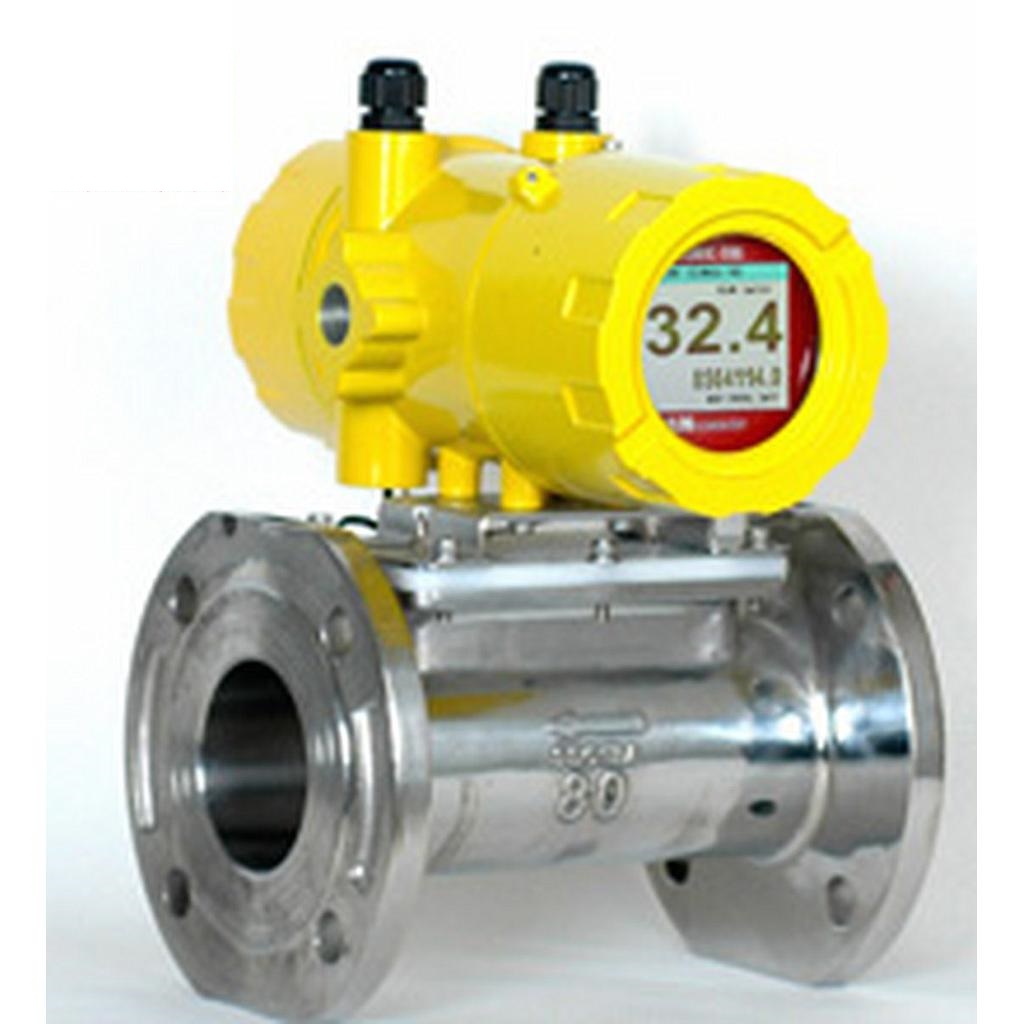

Jain Xonic 10G 超声波气体流量计

General spec.:
-Measuring Method: ultrasonic transit - time difference
-Velocity Measurement: - 30m/s ~ 30 m/sec
-Minimum Velocity: 0.05 m/s
-Reproducibility: 0.25 %
-Accuracy : 1.0% RD
-Measuring Gas Type: natural gas, gas, AIR, combustion gas
Converter:
- Digital out: 2 bộ thu thập mở
- Analog cut: two 4 - 20mA
- Analog in:  one 4 - 20mA
- Interface: RS-232C, RS-485
- Power : 12~24VDC
Transducer:
- Flange range: 50~ 300mm flange type

Detail

datasheet

Applications
• Natural gas
• Chimney flue gas
• COG gas
• Biogas
• Vapor Gas
• Fuel gas
• Vent gas

Feature:
• 0.05m/s Measuring low flow rates
• Wide measuring range 200:1
• No moving parts
• pressure loss control
• Easy installation and maintenance
• 3- line measurement
•Temperature sensor, and the volume compensation
• 100% Domestic product (SandanR&BD Capacity building projects)
