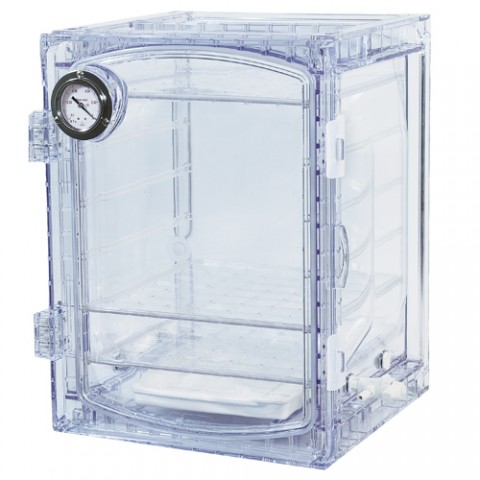

JEIOTECH VDC-31U 真空干燥器 (35L/1.2)
制造商: JEIOTECH Model: VDC-31U P/N: AAAD4111 来源: Korea 保障: 12 Month - 报价要求
- 联系
Internal Volume (L / cu ft) :35 / 1.2
Gauge Range (Mpa) 0 to -0.1 (Analog)
Nozzle (mm / inch, Ø) 9.5 / 0.37
Max. Permissible Vacuum (bodies) 1.33×10-4 Mpa (Analog)
Max. Load (kg / lbs) /per Shelf: 5 kg
Number of Shelves (included / max.) 3 / 5
Material
Bodies PC (Polycarbonate)
Perforated Sample Tray PC (Polycarbonate)
Drying Agent Tray / Locker PP (Polypropylene)
Vacuum Seal Silicone Rubber
Dimension (W×D×H): 355x375x345mm ,
Net Weight(kg ): 10.8 kg
Cat. No. : With UV Block Effect
datasheet
Brochure
odel 1) VDC-11/11U VDC-21/21U VDC-31/31U VDC-41/41U Internal volume (L / cu ft)
11 / 0.4
23 / 0.8
35 / 1.2
45 / 1.6
Gauge range (Mpa)
0 to -0.1
Nozzle (mm / inch, Ø)
9.5 / 0.37
Max. permissible vacuum (bodies)
1.33×10-4 Mpa
Max. load (kg / lbs) per shelf
3 / 6.6
5 / 11
Number of shelves (standard / max.)
2 / 4
3 / 5
3 / 6
Material
Body
Polycarbonate
Perforated sample tray
Drying agent tray / Locker
Polypropylene
Vacuum seal
Silicone rubber
Dimension (W×D×H)
Interior (mm / inch)
248x254x238
/ 9.8x10x9.4
346x365x246
/ 13.6x14.4x9.7
355x375x345
/ 14 x 14.8 x 13.6
355x374x445
/ 14x14.7x17.5
Exterior (mm / inch)
322x285x271
/ 12.7x11.2x10.7
420x397x281
/ 16.5x15.6x11.1
420x397x381
/ 16.5x15.6x15
420x397x491
/ 16.5x15.6x19.3
Net weight (kg / lbs)
4.2 / 9.3
8.2 / 18.1
10.8 / 23.8
12.2 / 26.9
Cat. No. without UV block effect AAAD4001 AAAD4021 AAAD4011 AAAD4031 with UV block effect (U) AAAD4101 AAAD4121 AAAD4111 AAAD4131
