Output range: 5~250V, in 1V increments
10mA~3000mA, in 10mA increments (Max. 300W)
Type of output: Constant voltage mode, constant current mode
Output terminals: 4 pair recessed banana jack in parallel
Timer: 1min to 99hr 59min
Pause/resume function: Yes
Display: 7-segment 4 digit LED, 2 line
Operating conditions: 0~40℃ (32~104℉), 0~80% RH
Dimensions (W x D x H, mm / inch): 240 x 310 x 100 / 9.45 x 12.2 x 3.94
Net weight (kg /lbs): 2.5 / 5.51
Electrical requirement (VAC, Hz): 100-240VAC, 50/60Hz
Current consumption (A): 4.0/1.7A at max voltage & max power
Detail

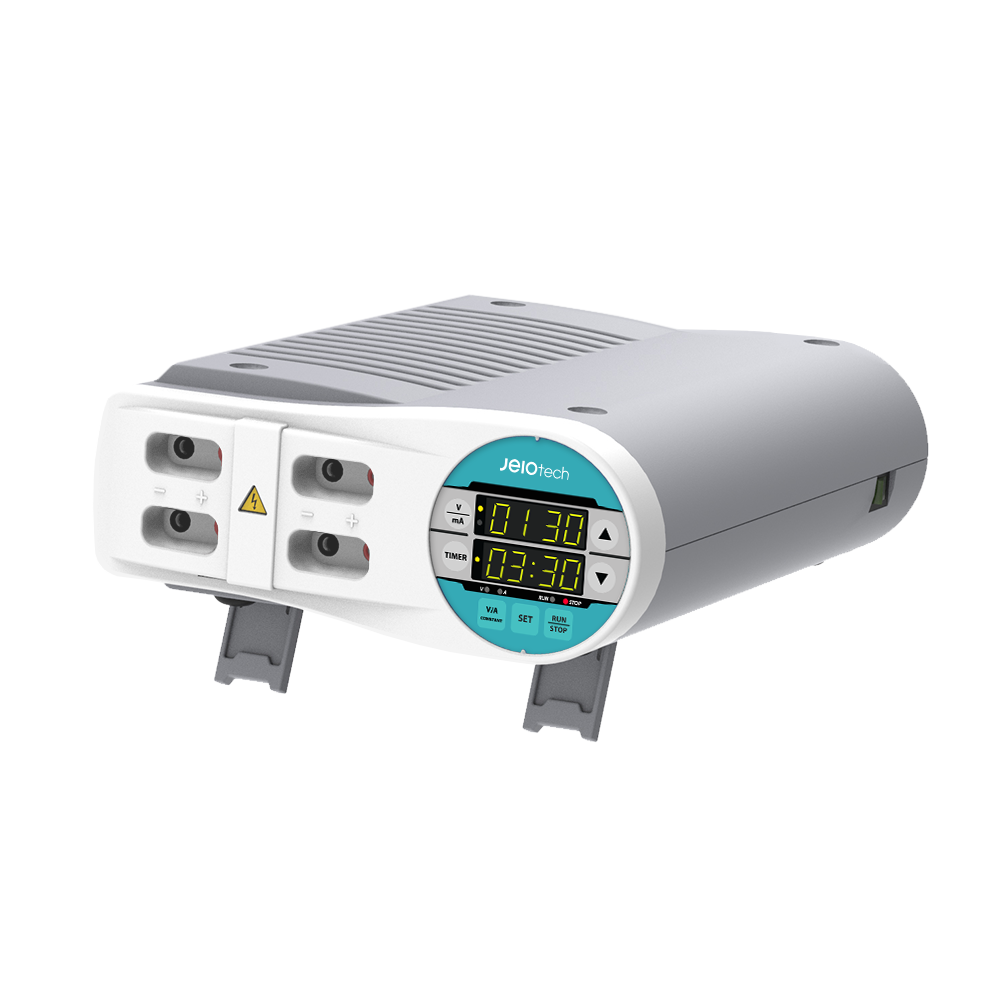

| Model | EPS-300 |
|---|---|
| Output range | 5~250V, in 1V increments 10mA~3000mA, in 10mA increments (Max. 300W) |
| Type of output | Constant voltage mode, constant current mode |
| Output terminals | 4 pair recessed banana jack in parallel |
| Timer | 1min to 99hr 59min |
| Pause/resume function | Yes |
| Display | 7-segment 4 digit LED, 2 line |
| Operating conditions | 0~40℃ (32~104℉), 0~80% RH |
| Dimensions (W x D x H, mm / inch) | 240 x 310 x 100 / 9.45 x 12.2 x 3.94 |
| Net weight (kg /lbs) | 2.5 / 5.51 |
| Electrical requirement (VAC, Hz) | 100-240VAC, 50/60Hz |
| Current consumption (A) | 4.0/1.7A at max voltage & max power |
| Cat. No. | AAAH6541 |
