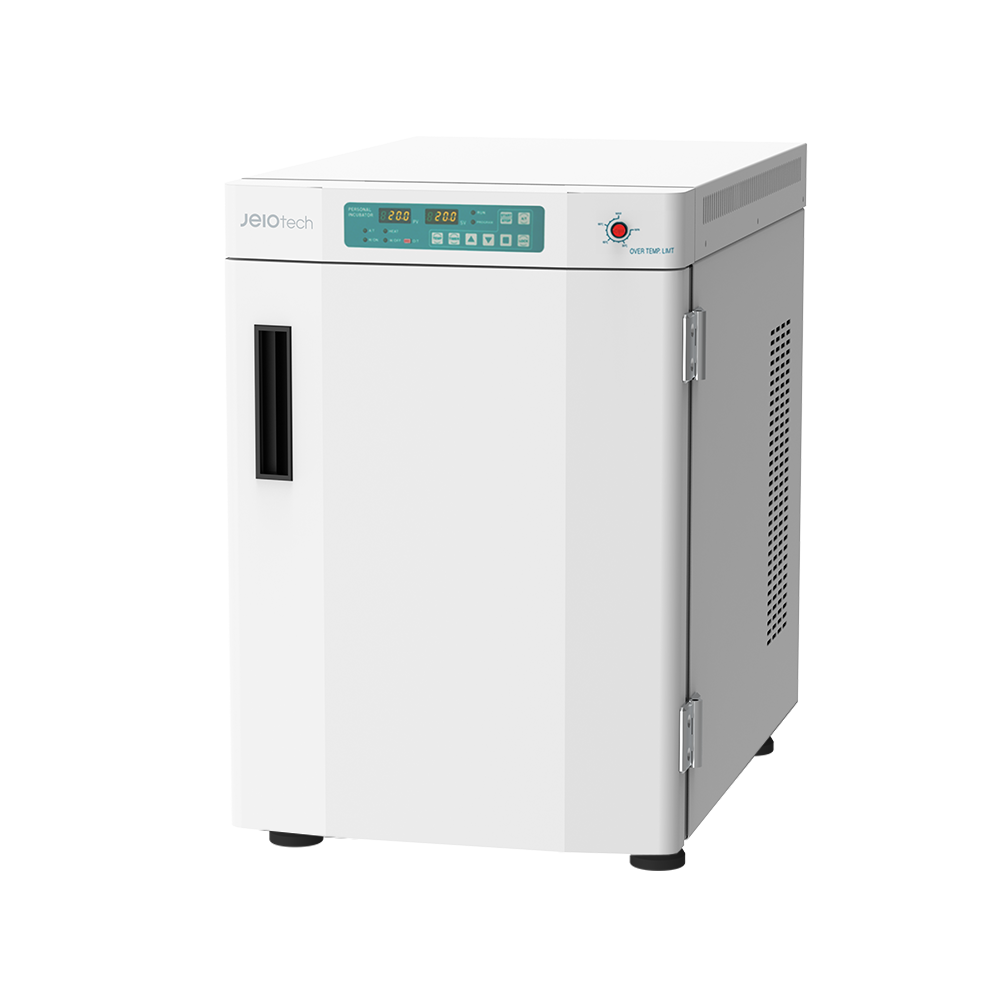

JEIOTECH ILP-12 紧凑型实验室培养箱/ 可叠放/ 台式 (10~40℃ , 48L)
制造商: JEIOtech Model: ILP-12 P/N: AAH24042K - 联系
Temperature Range (℃ / ℉) Amb. 10~40 /
Fluctuation at 37℃ (±℃ / ℉)0.2 / 0.36
Variation at 37℃ (±℃ / ℉) 0.15 / 0.27
Dimension (W×D×H) Internal (mm / inch) 334×334×430 /
Overall (mm / inch) 430×665×620 /
Net Weight (kg / lbs) 49
Details
Operating Features
- Temperature control: +10℃ to 40℃ at ambient temperature of 25℃.
- Microprocessor PID control.
- Simple calibration and auto-tuning functions.
- Digital timer with Delayed ON/OFF function: 1 min to 99 hr 59 min.
- High temperature limit setting and open door alarm.
- Convenient preset function for 3 most commonly used temperature settings.
- Up to 9 temperature steps and maximum 200 cycles of repetition programmable for each profile.
- Adjustable 3-step fan speed with defrosting time and period control.
- Intuitive control panel with bright LED display (0.1℃ resolution) and touch-sensitive keypad.
- RS-232 interface.
Constructional Features
- Convenient sample monitoring without affecting chamber temperature via the inner tempered-glass door.
- Environment-friendly insulation material (EPDM) used for safety and convenience.
(compliant with ASTM-C534 specification) - Space-saving design allowing even the smaller (14L) unit to hold two 1000mL Erlenmeyer flasks
| Model | ILP-02 | ILP-12 | |||
|---|---|---|---|---|---|
| Chamber Volume (L / cu ft) | 14 / 0.5 | 48 / 1.7 | |||
| Temperature | Range (℃ / ℉) | 10 to 40℃ (50~104℉) at ambient temperature of 25℃ | |||
| Fluctuation 1) at 25℃ (±℃ / ℉) | 0.1 / 0.18 | ||||
| Variation 1) at 25℃ (±℃ / ℉) | 0.5 / 0.9 | 0.4 / 0.72 | |||
| Dimension (W×D×H) |
Interior (mm / inch) | 315×200×230 / 12.4×7.9×9.1 | 334×334×430 / 13.1×13.1×17 | ||
| Exterior (mm / inch) | 430×495×400 / 17×19.4×15.7 | 430×665×620 / 17×26.2×24.4 | |||
| Net Weight (Kg / lbs) | 27.5 / 60.6 | 49 / 108 | |||
| Electrical Requirements (230V) | 60Hz, 1.8A | 50Hz, 1.8A | 60Hz, 3.5A | 50Hz, 3.5A | |
| Cat. No. | AAH24031K | AAH24032K | AAH24041K | AAH24042K | |
| Electrical Requirements (120V) | 60Hz, 3.4A | 60Hz, 6.7A | |||
| Cat. No. | AAH24033U | AAH24043U | |||
1) Technical data according to DIN 12880.
