主页 电热培养箱 JEIOTECH IL-11-4C 实验室培养箱/ 移动式 (0~60℃, 4 chambers, 600L)

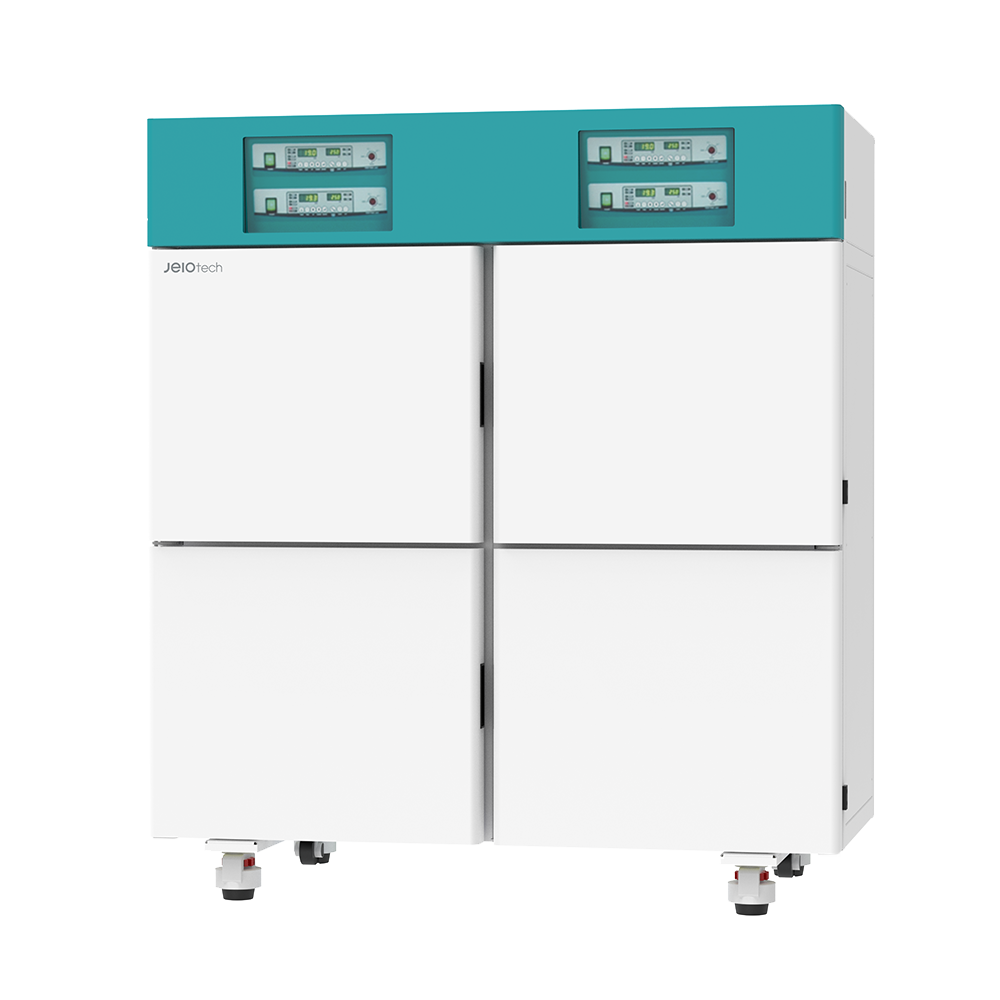

JEIOTECH IL-11-4C 实验室培养箱/ 移动式 (0~60℃, 4 chambers, 600L)

Temperature    Range (℃ / ℉)    Amb. 0~60 /
                                Fluctuation at 37℃ (±℃ / ℉)0.2 / 0.36
                                Variation at 37℃ (±℃ / ℉)    0.15 / 0.27
Dimension (W×D×H) Internal (mm / inch) 600×500×500  /
                                 Overall (mm / inch)    735×742×1010  /
                                 Net Weight (kg / lbs)   350
Electrical Requirements (230V, 50 / 60Hz)    9A
Cat. No.    AAH28012K

Detail

Operating Features

  • Temperature range: 0℃ to 60℃.
  • Independent temperature and timer control of each chamber using microprocessor PID.
  • Simple calibration and auto-tuning functions
  • Digital timer with Delayed ON/OFF function: ranging from 1 min to 99 hr 59 min.
  • Three most commonly used temperature settings programmable.
  • Up to 9 temperature steps and maximum 200 cycles of repetition programmable for each profile.
  • Adjustable 3 step fan speed with defrosting time and period control.
  • Intuitive control panel with bright LED display (0.1℃ resolution) and touch-sensitive keypad.
  • RS-232 interface.

Constructional Features

  • Four independently controlled 150L chambers (Model IL-11) merged into a single unit for space saving.
  • Convenient sample monitoring without affecting chamber temperature via the inner tempered-glass door.
  • Detachable shelves and rounded inner chamber corners allowing convenient cleaning.
  • Built-in casters for easy transport and installation.
Model IL-11-4C
Chamber Volume (L / cu ft) 600 / 21.1 [150 / 5.3 x 4 Chambers]
Refrigerator (Hp) 1/8 HBP x 4EA
Temperature Range (℃ / ℉) 0 to 60℃ / 32 to 140℉
Fluctuation 1) at 25℃ (±℃ / ℉) 0.1 / 0.18
Variation 1) at 25℃ (±℃ / ℉) 0.5 / 0.9
Dimension
(W×D×H)		 Interior (mm / inch) 600x500x500 / 23.6x19.7x19.7 Per chamber
Exterior (mm / inch) 1500x760x1690 / 59.1x29.9x66.5
Net Weight (Kg / lbs) 350 / 771.6
Electrical Requirements (230V, 60Hz) 9A x 2EA
Cat. No. AAH28011K
Electrical Requirements (230V, 50Hz) 9A x 2EA
Cat. No. AAH28012K
Electrical Requirements (120V, 60Hz) 16.5A x 2EA
Cat. No. AAH28013U

1) Technical data according to DIN 12880.
