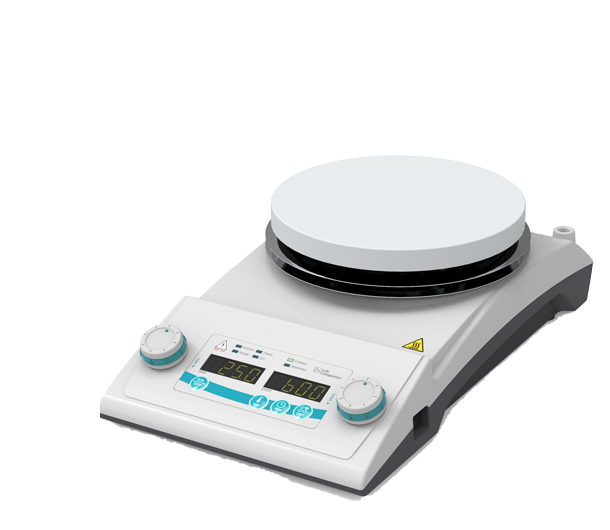

JEIOTECH T-14SG 加热板 (圆板, 350℃, 600W, KR plug)

Heating:

Temperature range (℃ / ℉): Max. 350 / 662

Control: Feedback control with PID

Display: LED digital (0.1℃ resolution)

Heating power (W): 600

Safety:

Hot top indicator (℃ / ℉): Warning lamp (50 / 122)

Over temp.: Top plate / Main body / PCB

Over current: Current limit protection

Timer: 2 type, 1min. to 99 hr. 59 min.

Load, Max. (kg / Ibs): 25 / 55.1

Top plate:

Shape: Round type

Material: Ceramic coated aluminum

Dimension (Ø or WxD) (mm / inch): 140 / 5.5

Body:

Shape: Straight body

Material: Aluminum

Dimension (WxDxH) (mm / inch): 161x290x100/ 6.34x11.42x3.94

Net weight (kg / Ibs): 2.2 / 4.9

Electrical requirements (230V, 50/60Hz): 3.0 A

Detail

Optional Accessories

MTT0132         Support rod, M10 (Ø12×400mm / Ø0.47x15.75˝)

AAA37512 Clamp holder, C-10 (Al body, Ø17mm / Ø0.66˝)

AAA37513 Clamp holder, C-7 (Al body, Ø12mm / Ø0.47˝)

AAA37514 Clamp holder, C-5 (PP body, Ø12mm / Ø0.47˝)

BEA1000014 2 Prong clamp (60mm / 2.36˝ grip)

for Hotplates / Hotplate Stirrers
