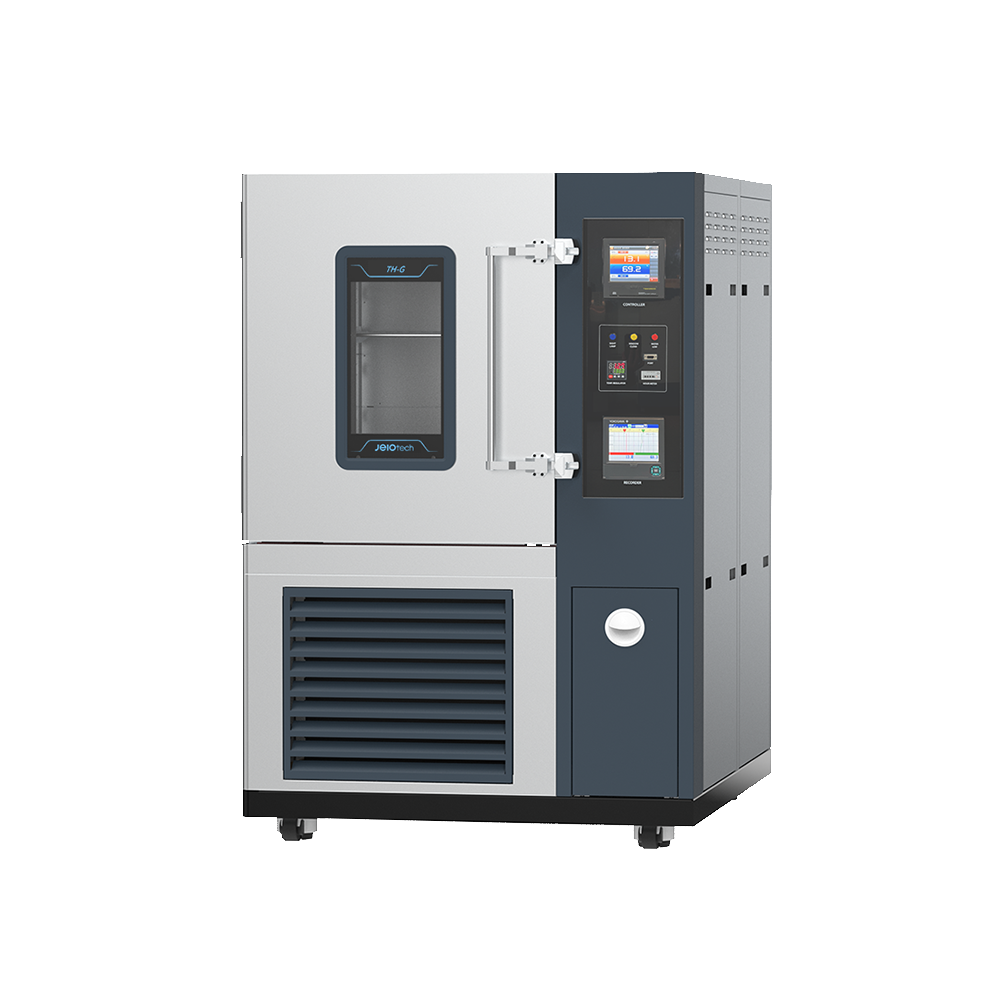

JEIOTECH TH-G-180 温湿度控制箱 (-40~150℃, 25~95%RH, 380V, 50/60Hz, 3ph)

Chamber volume (L / cu ft):189 / 7.4
Controller Programmable, Touch screen type controller (5.7” color monitor)
Temperature Range (℃ / ℉):-40 to 150 / -40 to 302 without humidity, 15 to 90 / 59 to 194 with humidity
Best programmable control range : -30 to 140 / -22 to 284
Fluctuation 1) (±℃ / ℉)at 40℃ / 75%RH:0.3 / 0.54
Variation 1) (±℃ / ℉) at 40℃ / 75%RH:0.5 / 0.9
Time Heating without humidity (min.) :70 from -40℃ to 120℃ (-40℉ to 248℉)
Cooling without humidity (min.):75 from 20℃ to -40℃ (68℉ to -40℉)
Humidity Range (%RH) 25 to 95 See the Feature for more detailed humidity range check.
Fluctuation 1) (±%RH)at 75%RH / 40℃:0.4
Variation 1) (±%RH) at 75%RH / 40℃:3
Refrigeration System:Mechanical single stage refrigerator system air-cooled condenser)
Refrigerant R-507
Water Supply Capacity 15L (0.53cu ft) - Cartridge type
Water quality pH6.2 to 7.2 / Electrical conductivity 20㎲ /cm to below
No. of wire shelves (standard / max.) 2 / 9
Distance of between shelves (mm / inch) 40 / 1.6
Max. load per shelf (kg / lbs) 20 / 44.1
Permitted total load (kg / lbs) 50 / 110.2
Dimension (W×D×H) Interior (mm / inch) 500×630×600/ 19.7×24.8×23.6
Dimension (W×D×H) Exterior (mm / inch) 1003×1139×1468/ 39.5×44.8×57.8
Viewing windows (mm / inch) 200×330 / 7.9×13
Net weight (kg / lbs) 320 / 705.5
Cable port Basically one hole provided / Ø50mm (2”) Optionally max. two holes available / Ø 50 or 80mm (2 or 3.2”)
Interface port Basically RS-232C [RS-485-optional]
Electrical requirements 380V, 50Hz, 3ph, 9.1A
