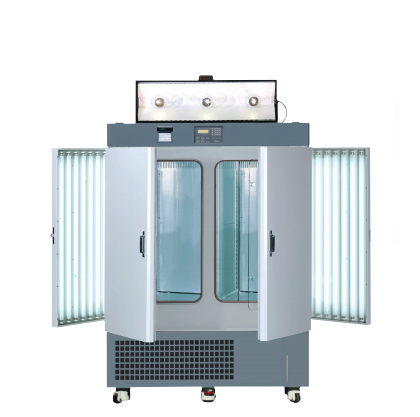

JEIOTECH GC-1000TLH 植物生长箱 (1000L, 5~50℃, 50~90%, CO2)
制造商: JEIOTECH Model: GC-1000TLH P/N: AAHA1032K - 报价要求
- 联系
Chamber Volume (L / cu ft) 1000 lit
Controller PID control (LCD Type)
Temperature: 5~50
Fluctuation 1) (±℃ / oF) at 40℃ / 60%RH 0.1
Variation 1) (±℃ / oF) at 40℃ / 60%RH 0.8
Humidity: 50~90 %
:Fluctuation (±%RH) at 60%RH / 40℃ 3
Refrigeration: System Air - cooled, R-404A, Capacity (W) 1300
Material: Ni-Cr Wire Heater / SUS Tube Heater , Polyurethane
Interface Port Basically RS-232C, [RS-485 : optional]
Dimension (W×D×H): Internal (mm / inch) 1200×800×1080 mm
: External (mm / inch) 1410×1070×2150 mm
Net Weight (kg / lbs) 550 kg
AC230V, 1ph, 50Hz , 30 A Cat.No. AAHA1032K
Datasheet
Operating Features
- +5℃ to 50℃ (lamp off) / 10℃ to 50℃. (lamp on)
- Max. to 35,000Lux for GC-1000.
- Max. to 20,000Lux for GC-300 Models.
- 40 to 80% RH for GC-300TLH. (at 20~35℃)
50 to 90% RH for GC-1000TLH. (at 20~35℃) - 300 to 5,000ppm CO2 control. (optional)
- Microprocessor PID control / Auto-tuning / Calibration.
- Digital timer: 1 min to 99 hr 59 min.
- 10 step programmable temperature, humidity, and illumination profiles and repeat the steps up to 999 cycles.(self-testing)
Constructional Features
- High quality #304 grade stainless steel interior and dirt repellent powder coated exterior surface.
- User-friendly door system.
- Silicone packing for keep inner chamber perfectly.
- External door with magnetic sealing for dual airtight.
- Smoothly open to minimize damage of samples. - Wide inner tempered glass door provides a full view of the samples.
- A tempered window provides a clear view of your specimen during testing. - Powerful air circulator for smooth airflow.
- Air flow system very efficient for plant growth.
- One propeller for GC-1000TLH / tangent blower and a sirocco fan for GC-300 Models. - High frequency electronic ballast lamps.
- Reinforced Blue and Red spectrums lighting system for plant photosynthesis.
- Economical with stable light and long life span.
- Easy-to change bulbs. - Heat rise restraint.
- Unique construction to minimize the heat from rising due to the luminous light source.
- Designed to exhaust the heated air through the upper holes.
(only for GC-1000TLH) - Easy cleaning of condenser air-filter.
- To prevent deterioration of refrigeration system and keep filter dust free by periodically cleaning the filter. - Casters for easy mobility when installing or moving environ-mental testing chamber.
- Electronic humidity sensor is fast acting and easy to calibrate.
- Dual type water level sensor.
- Adjustable water tank positions. (only for GC-300TLH)
- Removable shelving and rounded inner chamber corners for easy cleaning.
Safety Features
- Leakage breaker for power supply.
- Over current protection.
- Over heat protection with alarm.
- Door opening alarm.
- Low and empty water level alarm. (TLH Models only)
Model | GC-300TL | GC-300TLH | GC-1000TLH | ||||
---|---|---|---|---|---|---|---|
Chamber Volume (L / cu ft) |
300 / 10.6 | 1000 / 35.3 | |||||
Control System | Microprocessor PID controller | ||||||
Temperature | Range (℃ / ℉) | 5 to 50 / 41 to 122 - Lamp off | |||||
10 to 50 / 50 to 122 - Lamp on | |||||||
20 to 50 / 68 to 122 - with humidity | |||||||
Fluctuation (±℃ / ℉) at 25℃ | 0.1 / 0.18 - without humidity | ||||||
Variation (±℃ / ℉) at 25℃ | 0.8 / 1.43 - without humidity | ||||||
Illumination | Range (Lux) | 0 to 20,000 | 0 to 35,000 | ||||
Control (steps) | 10 | 11 | |||||
Lamp | Fl lamp (32W×18EA) | FL lamp (32W×16EA) | |||||
Metal lamp (400W×3EA) | |||||||
Humidity | Range (RH %) |
- | 40 to 80 at 20 to 35℃ | 50 to 90 at 20 to 35℃ | |||
70 to 90 at 36 to 50℃ | 60 to 90 at 36 to 50℃ | ||||||
Fluctuation (±RH)at 60% RH | - | 3 | |||||
Co2 (optional) |
Range (ppm) | 300 to 5,000 | |||||
Sensor | NDIR CO2 sensor | ||||||
Refrigerant (HP) | 1/2 | 3/4 | |||||
Temp. Heater Power (W) | 750×2EA | 1,500×2EA | |||||
Humid. Heater Power (W) | - | 1300 | 1500 | ||||
Dimension (W×D×H) |
Interior (mm / inch) |
510×540×1100 / 20×21.3×43.3 | 1200×800×1080 / 47.2×31.5×42.5 | ||||
Exterior (mm / inch) |
700×805×1900 / 27.6×30.1×74.8 | 1410×1070×2150 / 55.5×42.1×84.7 | |||||
Net Weight (kg / lbs) |
250 / 551.2 | 550 / 1212.5 | |||||
Electrical Requirements (230V) | 60Hz/12.5A | 50Hz/12.5A | 60Hz/16A | 50Hz/16A | 60Hz/30A | 50Hz / 30A | |
Cat. No. | AAHA1011K | AAHA1012K | AAHA1021K | AAHA1022K | AAHA1031K | AAHA1032K |
