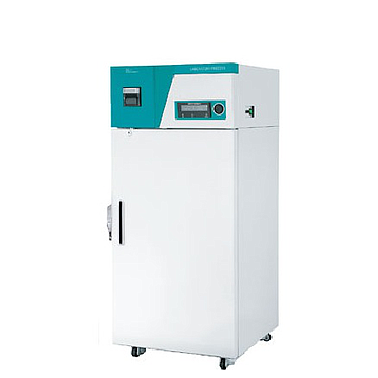

Jeiotech实验室冷冻柜FHG-650

  • 制造商: JEIOTECH
    Model: FHG-650
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Model: FHG-650
Manufacture: Jeiotech
Origin: Korea
Warranty: 12 months

Chamber volume [L / cu ft]    647 lit
Display    VFD and touch-screen
Temperature range [℃/ ℉]    -15 ~ 0℃
Refrigerator [Hp]    1
Meterial  Stainless steel #304, Steel, 1.0 mm, powder coating
Dimensions [W×D×H] : Interior [mm / inch]::650×675×1450  mm
                                    Exterior [mm / inch]: 950x885x1980 mm
Electrical Requirements [230V, 50Hz]    3.8 A
Cat. No.    Solid door type    AAHE2122K


详细

Datasheet

Safety Features

  • Automatic shutdown of fan for minimization of heat loss when the door is opened.
  • Over current protection, high and low temperature alerts, key pad button lock function.
  • Open door alert, built in door lock.



Operational Features

  • Intuitive and easy-to-operate control panel with VFD and touch-sensitive buttons.
    - Easy temperature unit conversion between °C and °F
  • Dual Defrost system
    - Innovative auto-defrost system automatically activated when detecting trace amount of frost build-up
       in the evaporator
    - Additional manual defrost system for immediate frost removal
  • Three types of recorders to choose from (optional)
    - Dot recorder (6 point)
    - Chart recorder (6”, 24hr/7days)
    - Thermal line recorder



Constructional Features

  • High-quality 304 grade stainless steel chamber.
  • Fully insulated chamber ensuring minimal chamber’s temperature fluctuation.
  • Air-tight door seal with vice lock door closing mechanism for safe storage of samples.
  • Fully insulated chamber ensuring minimal chamber temperature fluctuation.
  • Easy to store samples with included wire shelves.
  • High thermal efficiency evaporation system made of low corrosion material
  • Built-in 50mm diameter cable port for external probes or wires. (except for FHG/FMG/FCG-150)
  • Dedicated stand with casters and stacking kit for FHG/FMG/FCG- 150 Models for use in labs with limited space(optional)
  • Various accessories
Model FHG-150 FHG-300 FHG-650
Chamber Volume (L / cu ft) 156 / 5.5 319 / 11.3 647 / 22.8
Display VFD and touch-screen
Temperature Range (℃ / ℉) -15 to 0 / 5 to 32
Refrigerator (Hp) 1 / 2 3 / 4 1
No. of Wire Shelves
(included / max.)
2 / 6 3 / 11 3 / 17
No. of Wire Shelves, Slide
(max., optional)
4 7 11
No. of Drawer Shelves, Slide
(max., optional)
3 5 8
Max. Load per Shelf (kg / Ibs) 26 / 57.3 26 / 57.3 30 / 66.1
Door Type Solid
Material Interior Stainless steel #304
Exterior Steel, 1 mm, powder coating
Insulation 100mm, Polyurethane foam
Dimension (W×D×H) Interior (mm / inch) 550x580x490 /
21.7x22.8x19.3
550×580×1000 /
21.7×22.8×39.4
650×675×1450 /
25.6×26.6×57.1
Exterior (mm / inch) 763x871x975 / 30x34.3x38.4 750x799x1610 / 29.5x31.5x63.4 950x885x1980 / 37.4x34.8x78
Net Weight (kg / lbs) 120 / 264.6 150 / 330.7 233 / 513.7
Electrical Requirements (230V, 60Hz) 3.5A 3.8A 3.8A
Cat. No. Solid Door Type AAHE2101K AAHE2111K AAHE2121K
Electrical Requirements (230V, 50Hz) 3.5A 3.8A 3.8A
Cat. No. Solid Door Type AAHE2102K AAHE2112K AAHE2122K
