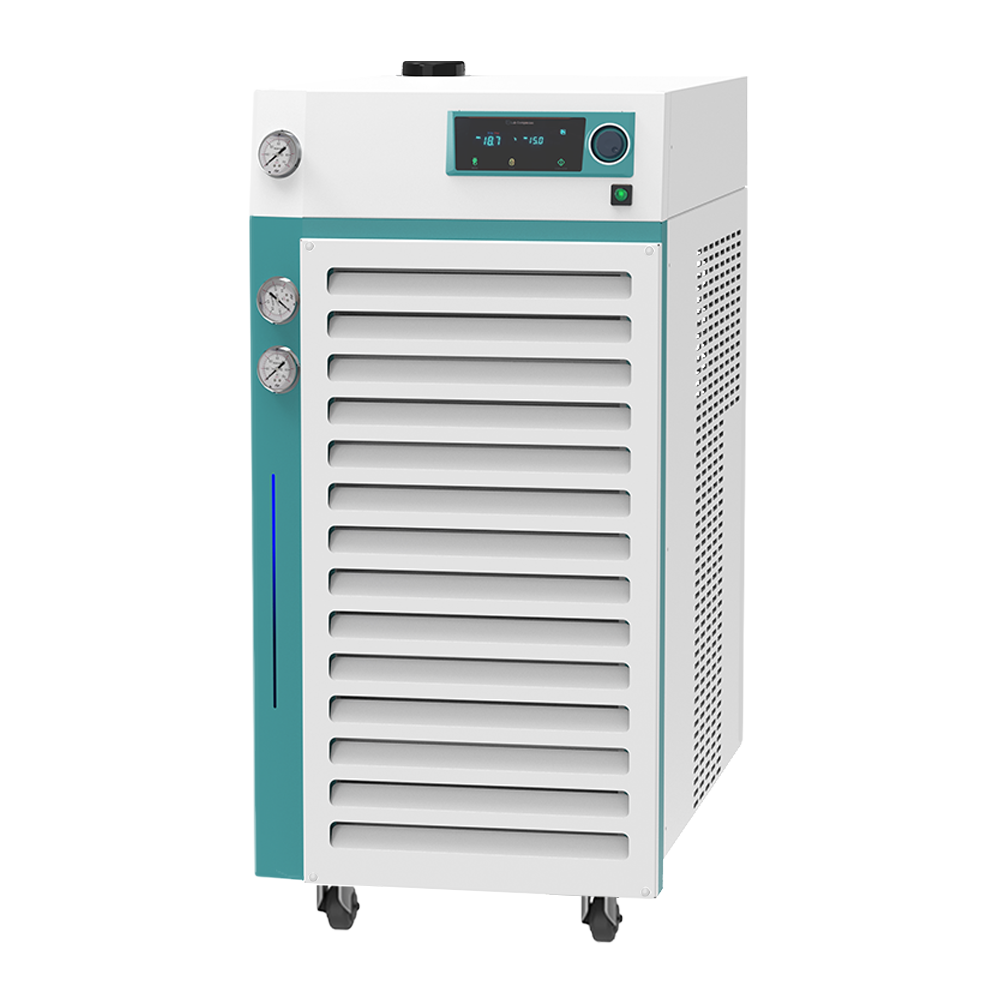

JEIOTECH HH-45H 再循环式实验室冷却机 (-20~80℃)

- Temperature 1) (bath fluid : ethylene glycol mix 1:1 water)
+ Working temperature range (℃ / ℉): -20 to 80 / - 4 to 176
+ Temperature stabilityat 15℃ (±℃ / ℉): 0.1 / 0.2
- Cooling capacity(bath Fluid : ethylene glycol mix 1:1 water)
+ at 80℃ (kw): 6
+ at 40℃ (kw): 4.5
+ at 20℃ (kw): 6.5
+ at 0℃ (kw): 3
+ at -20℃ (kw): 1.2
- Heating capacity(kw): 8.4
- Pump
+ Max. flow rate(L / min, gal / min): 70 / 18.5
+ Max. pressure (bar / psi): 6 / 87.02
- Dimension
+ Max. filling capacity (L, cu ft):39 / 1.37
+ For tubing dia. (mm / inch): 20 / 3/4
+ Filling inlet (Ø, mm / inch): 120 / 4.7
+ Overall (WxDxH, mm / inch): 605×1045×1300/ 23.8×41.4×51.2
+ Net weight (kg / Ibs): 171±10/ 377±22
- Electric requirement (380V, 60Hz): 18.3
