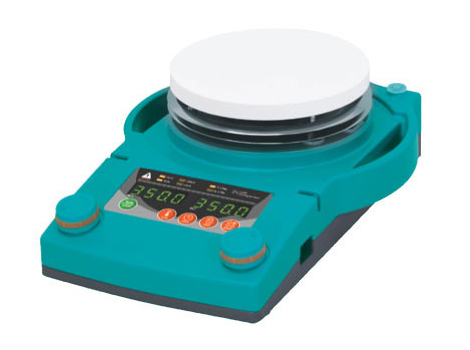

Jeiotech T-17R 加热炉 (350℃)
制造商: JEIOTECH Model: T-17R - 报价要求
- 联系
Temperature Range (℃ / ℉) Amb. to 350 / 662
Control Feedback Control with PID / Scale
Display LED digital (0.1℃ resolution)
Heating Power (W) : 800
Hot Top Indicator (℃ / ℉) Warning lamp (50 / 122)
Over Temp. Top plate Main body PCB
Over Current Current limit protection
Timer 2 type, 1min to 99 hrs 59 min
Load, Max (kg / Ibs) 25 / 55.1
Material Ceramic coated aluminum
Dimension (WxDxH, mm / Inch) 240x324x100 mm
Electrical Requirements (230V,50Hz / 60Hz) 4 A
Heating Bath
transparent safety shield
Clamp Holder (C-10,C-7,C-5)
Support rods
Operating Features
- Overheat prevention circuit turns off the heater if the top plate temperature reaches 450℃ for any reason.
- Hot Top Warning Indicator blinks when the top plate temperature is over 50℃ to prevent accidental injuries.
- Button Lock feature prevents inadvertent or accidental changes during operation.
- Microprocessor PID control for precise temperature.
- Automatic temperature calibration feature for precise temperature control.
- Three user-selectable temperature control modes provided:
- Optimal Mode, Fast Mode, Slow Mode. - Optimal heating level can be selected by turning the heater scale knob. (from 0 to 100%)
- Two user-selectable timer activation modes allowing the timer to start immediately after the timer setting or to be activated only when the set temperature is reached.
Constructional Features
- Integrated design of the heater and the top plate provides exceptional heat transfer rate and quick heat up capability.
- Non-slip heating bath with concavo-convex bottom prevents unintentional slips of the bath. (optional)
- A transparent safety shield protects users from liquid splashes or decoupled stir bars during operations. (optional)
- Two support rods allow for diverse flexibility in configuring other test equipments and accessories. (optional)
Model 1) | T-14S | T-14R | T-17S | T-17R | ||
---|---|---|---|---|---|---|
Technical Data | Heating | Temperature Range (℃ / ℉) | Amb. to 350 / 662 | |||
Control | Feedback Control with PID / Scale | |||||
Display | LED digital (0.1℃ resolution) | |||||
Heating Power (W) | 600 | 800 | ||||
Safety | Hot Top Indicator (℃ / ℉) | Warning lamp (50 / 122) | ||||
Over Temp. | Top plate Main body PCB | |||||
Over Current | Current limit protection | |||||
Timer | 2 type, 1min to 99 hrs 59 min | |||||
Load, Max (kg / Ibs) | 25 / 55.1 | |||||
General Data | Top Plate | Material | Ceramic coated aluminum | |||
Dimension (Ø, mm / Inch) | 140 / 5.5 | 170 / 6.7 | ||||
Body | Material | Cast aluminum | ||||
Dimension (WxDxH, mm / Inch) | 161x290x100 / 6.34x11.42x3.94 | 210x294x99 / 8.27x11.57x3.90 | 191x330x101 / 7.52x12.99x3.98 | 240x324x100 / 9.45x12.76x3.94 | ||
Weight (kg / Ibs) | 2.2 / 4.9 | 2.4 / 5.3 | 2.9 / 6.4 | 3 / 6.6 | ||
Electrical Requirements (230V,50Hz / 60Hz) | 3 A | 4 A | ||||
Cat. No. | AAH35015K | AAH35115K | AAH35025K | AAH35125K | ||
Electrical Requirements (120V,60Hz) | 5A | 6.7A | ||||
Cat. No. | AAH35013U | AAH35113U | AAH35023U | AAH35123U |
※ Permissible environmental conditions: temperature (5 - 40℃) and relative humidity (up to 80%).
※ Above specifications can be changed without prior notice.
