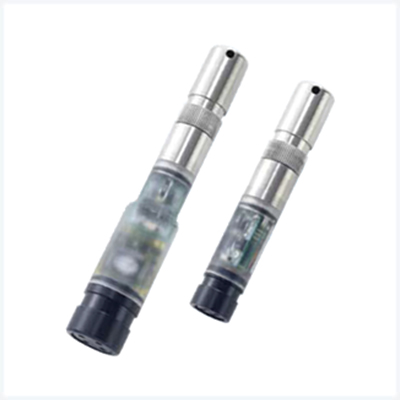

JFE DEFI2-D50HG High accuracy pocket-size pressure logger

Parameter: Pressure（Depth）

Principle: Semiconductor

Range: 0 to 5 MPa(0 to 500 m)

Resolution: 0.0005 MPa(0.05 m)

Accuracy:  ±0.3%F.S

Response time: 0.05s(90%)

Depth rating: In accordance with the depth range

Communication: Infrared to Interface Unit

Output / transfer time: RS-232C, 115,200 bps /Approx. 22 minutes (fully recorded)

Memory medium: Internally installed flash memory 8 MB

No. of samples: Approx. 820,000 samples

Ａ/Ｄ converter: 16 bit

Measuring mode: Continuous

Measuring interval: 1 to 59 s, 1 to 60 min

Power Source: AAA alkaline battery

Consumption: Approx. 25 mA / 30 mA (while logging)

Material: Body: Titanium (grade 2)

  Window: Polycarbonate

Weight: 132 g / 72 g (including battery)

Dimensions: Φ26 × 150 mm
