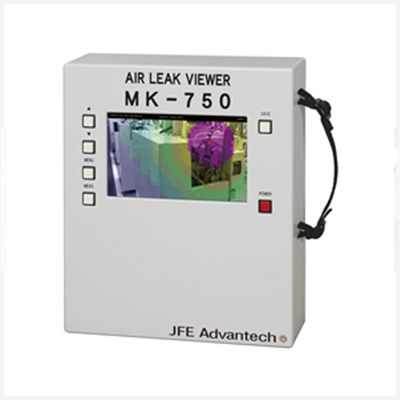

JFE MK-750 Gas/Air Leak Viewer

Ultrasonic wave sensor: Center frequency 40kHz

Detection ability: Leak of 70kPa from a hole of 0.2mm diameter can be detected at a distance of 4.6m At laboratory of us

Detectable range: 50°x30°

Screen: 5 inches display. 800X480 pixels

Indication contents: Camera image. Sound pressure peak value, Sound pressure map

Updating frequency: 5 times per second

Data storage capacity: Over 3500 records Data media : 1GB SD card

Data contents: Camera images, Sound pressure map overlaying images, Sound pressure map data

Power supply: Lithium ion battery Continuous operation time: About 2 hours

Dimensions: 180mm (W) x 210mm (H) x 50mm (D)

Mass: Approx. 1200g (including rechargeable battery)

Standard configuration:

1 main unit, 1 SD card (1B), 1 rechargeable Lithium ion battery, 1 recharger, 1 hard strap, 1 instruction manual, 1 carry case (MK-9704)
