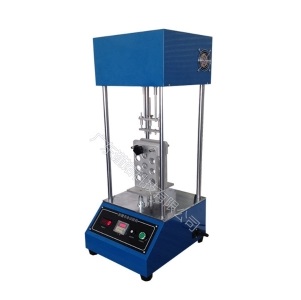

Jinuosh L-5600 Key Life Testing Machine (1 trạm, 50~200G, 30-120times/min)

Specifications: single station (multi-station can be customized)

Speed test range: 30-120 times/min, speed can be adjusted,

The maximum endurance of the test bench is 10KG

Test head load: 50G, 100G, 200G

Up and down stroke of receiving stage: 120mm

The actual size of the test bench: 120x200mm

The impact movement method is driven by a motor cam, and linear bearing movement is used up and down, with precise positioning and frameless movement.

Counter range: 0-999999 times

Voltage: 220VAC
