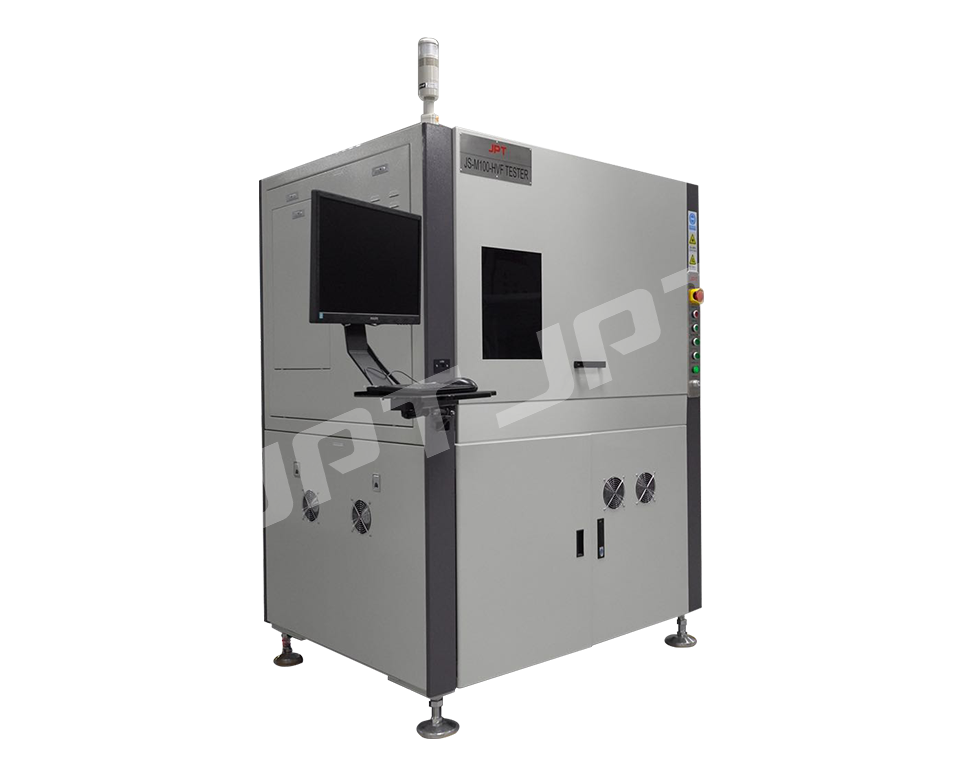

JPT JS-M100-HVF High Voltage Resistor Tester (1Ω-10M)

Specifications: 0402 and above

Measuring range: 1Ω-10M

Maximum voltage: 600V

High voltage protection: Over current fusing alarm

Laser power: 20W/30W

Beam expander: 2X

Focal length of field mirror: 125mm

Scanning accuracy of galvanometer: ±1μm

Repeated clamping accuracy of platiorm: ≤5μm

Positioning accuracy of carrier motion: 1μm

Measurement channel: 192

Fixed mode of probe card: Adjustable horizontal plane


The high-voltage tester is mainly used for short-term overload (STOL) test of high-quality and high-precision chip resistors. The resistance change before and atier the high-voltage test is compared by the measurement system, and the bad resistors are screened out and cut through by laser to reduce the risk of resistance instability. Customers can edit the test conditions to meet the quality requirements of different specifications of resistors. It is an efficient high-voltage method with a screening function.
