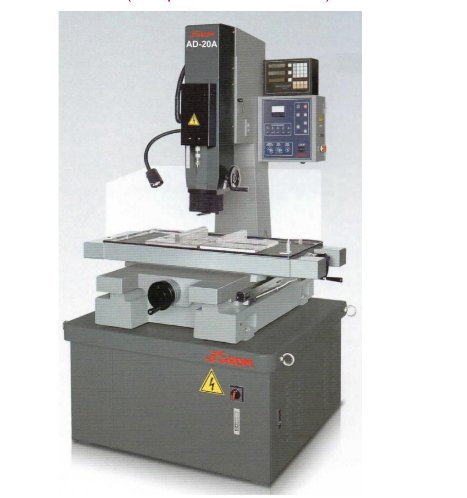

JSEDM AD-20A 第三类细孔放电机床 (Ø0.2~Ø3.0 mm)

Working table dimension: 460x210 mm

Electrode Diameter: Ø0.2~Ø3.0 mm

Max. Workpiece Dimensions: 630x420 mm

Max. Workpiece Weight: 80 kgs

Table Travel X, Y: 300x200 mm

Dielectric;: Water

Z Axis Travel: 350 mm

Capacity of Dielectric: 20 Litres

Ram Servo Travel: 330 mm

Machine Weight (NW / GW): 550 / 650 kg

Max. Length of Electrode: 400 mm

Packing Dimensions: 1240x1210x2240 mm
