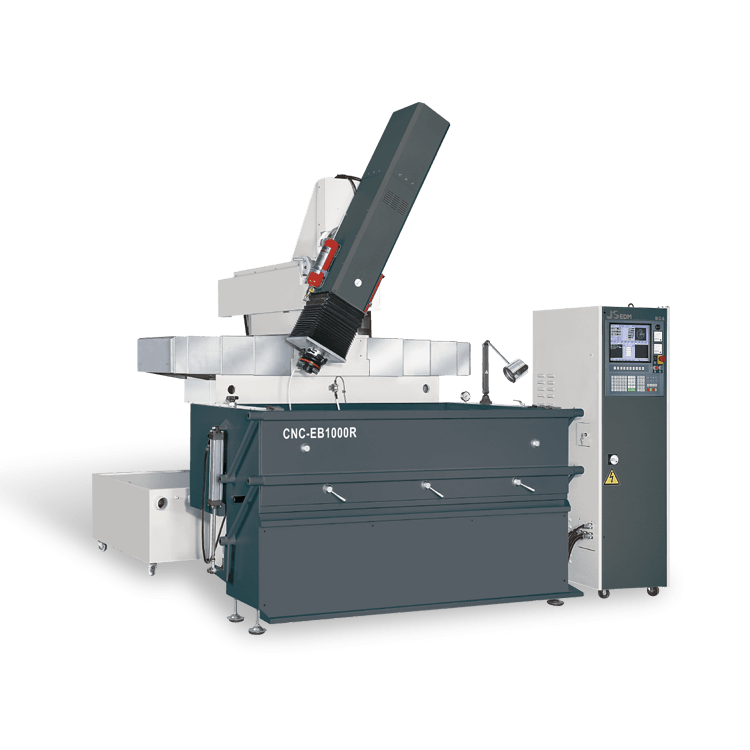

JSEDM CNC-EB1000R Electric Discharge Machine (600; 800 mm3/min)

Capacity of work tank: 1960x1100x550mm

Work table size: 1100x700mm

Longitudinal travel(X-axis): 1000mm

Cross travel(Y-axis): 600mm

Z axis travel(Z-axis): 500mm

Distance between platen to table: 500~1000mm

Max. Electrode weight: 100kgs/3kgs (Slope machining process)

Max. Work piece weight: 4000kgs

Fluid tank capacity: 1560L

Machine outside dimensions(WxDxH): 3600x3200x3200mm

Machine weight: 5000kgs

Max. Machining current: 90A; 120A(Optional)

Max. Power input: 10KVA; 13KVA

Max. Machining rate: 600; 800 mm3/min

Min. Electrode wear ratio: 0.12%

Best surface / Ra: Ra 0.2μm

Min. D. R. O. resolution(mm): 0.001mm

Generator weight: 350 kgs
