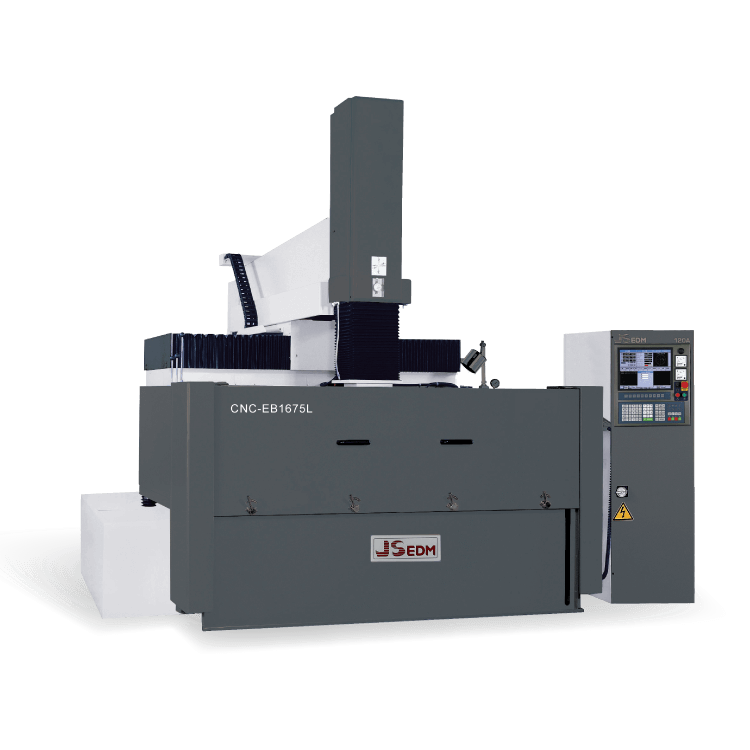

JSEDM CNC-EB1675L Electric Discharge Machine (600; 800 mm3/phút)

Capacity of work tank: 2400x1320x700mm

Work table size: 1850x1000mm

Longitudinal travel(X-axis): 1600mm

Cross travel(Y-axis): 750mm

Z axis travel(Z-axis): 550mm

Distance between platen to table: 500~1050mm

Max. Electrode weight: 450kgs

Max. Work piece weight: 6500kgs

Fluid tank capacity: 2600L

Machine outside dimensions(WxDxH): 4800x3800x3200mm

Machine weight: 8500kgs

Max. Machining current: 90A; 120A(Optional)

Max. Power input: 10KVA; 13KVA

Max. Machining rate: 600; 800 mm3/min

Min. Electrode wear ratio: 0.12%

Best surface / Ra: Ra 0.2μm

Min. D. R. O. resolution(mm): 0.001mm

Generator weight: 350 kgs
