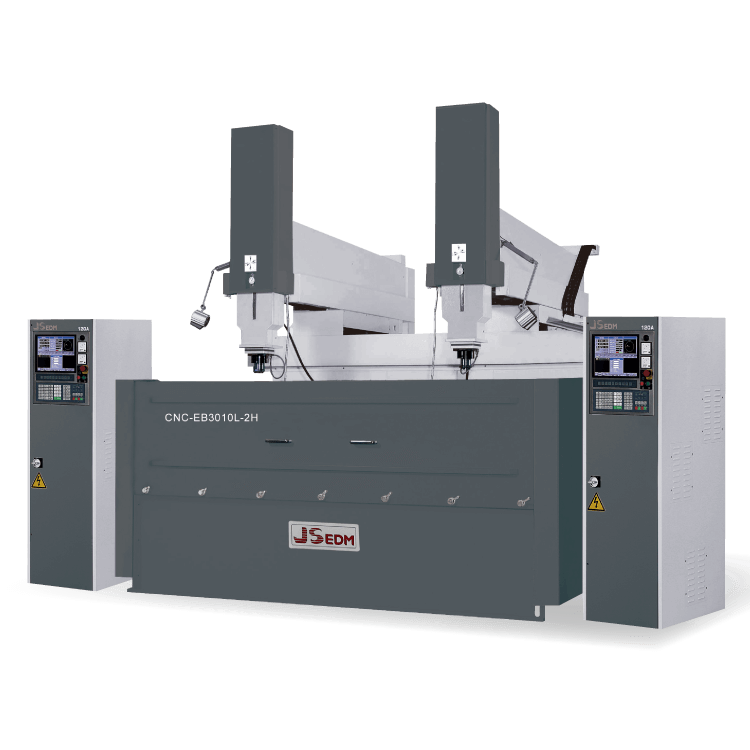

JSEDM CNC-EB3010L-2H Electric Discharge Machine (800 mm3/min)
制造商: JSEDM Model: CNC-EB3010L-2H 保障: 12 Month - 报价要求
- 联系
Capacity of work tank: 3900x1700x800mm
Work table size: 3100x1100mm
Longitudinal travel(X-axis): 2550(SM) 1275(DM)mm
Cross travel(Y-axis): 1000mm
Z axis travel(Z-axis): 600mm
Distance between platen to table: 720~1320mm
Max. Electrode weight: 500kgs
Max. Work piece weight: 19000kgs
Fluid tank capacity: 6000L
Machine outside dimensions(WxDxH): 7000x4600x3620mm
Machine weight: 21000kgs
Max. Machining current: 120A
Max. Power input: 13KVA
Max. Machining rate: 800 mm3/min
Min. Electrode wear ratio: 0.12%
Best surface / Ra: Ra 0.2μm
Min. D. R. O. resolution(mm): 0.001mm
Generator weight: 380 kgs
