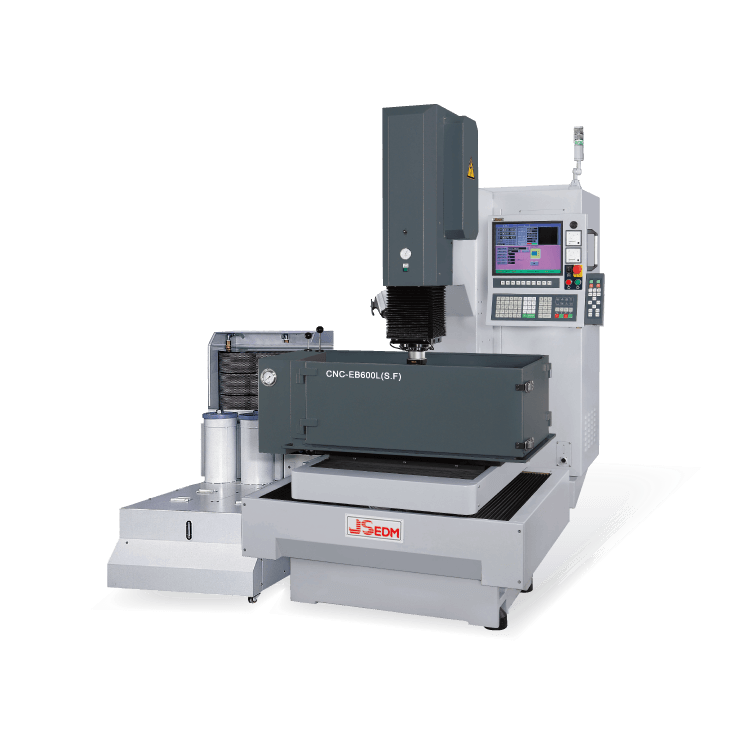

JSEDM CNC-EB600L(S.F) Electric Discharge Machine (400; 600 mm3/min)

Capacity of work tank: 1100x600x400mm

Work table size: 700x400mm

Longitudinal travel(X-axis): 400mm

Cross travel(Y-axis): 300mm

Z axis travel(Z-axis): 300mm

Distance between platen to table: 270~570mm

Max. Electrode weight: 100kgs

Max. Work piece weight: 1000kgs

Fluid tank capacity: 370L

Machine outside dimensions(WxDxH): 2700x1750x2350mm

Machine weight: 2400kgs

Max. Machining current: 60A; 90A(Optional)

Max. Power input: 7KVA; 10KVA

Max. Machining rate(mm3/min): 400; 600

Min. Electrode wear ratio: 0.12%

Best surface / Ra: Ra 0.2μm

Min. D. R. O. resolution(mm): 0.001mm

Generator weight: -
