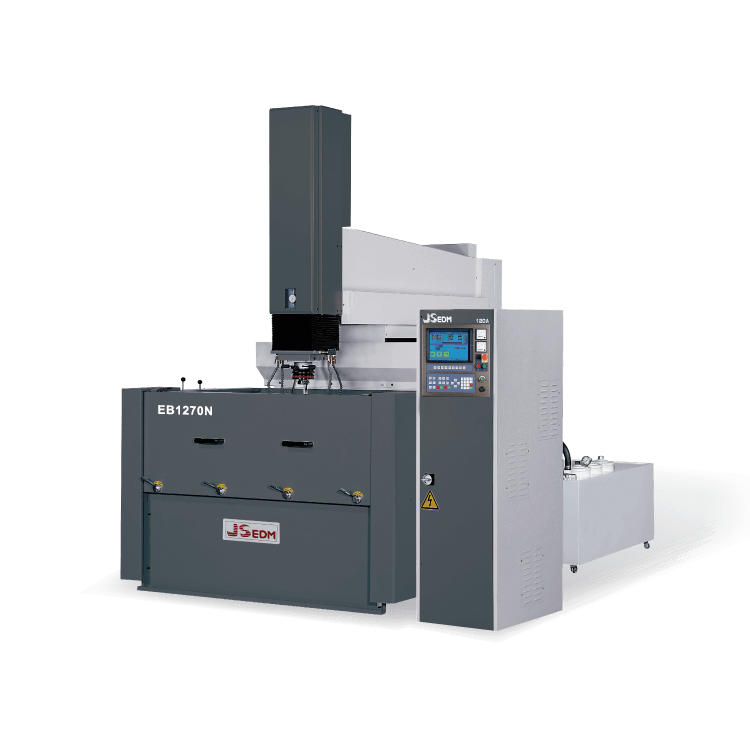

JSEDM EB1270N ZNC Electric Discharge Machine (600; 800 mm3/min)

Capacity of work tank: 2100x1250x620 mm

Work table size: 1350x820mm

Longitudinal travel(X-axis): 1200mm

Cross travel(Y-axis): 700mm

Z axis travel(Z-axis+W-axis): 500mm

Distance between platen to table: 510~1010mm

Max. Electrode weight: 400kgs

Max. Work piece weight: 5000kgs

Fluid tank capacity: 1900L

Machine outside dimensions(WxDxH): 4000x3400x3250mm

Machine weight: 6500kgs

Max. Machining current: 90A; 120A(Optional)

Max. Power input: 10KVA; 13KVA

Max. Machining rate: 600; 800 mm3/min

Min. Electrode wear ratio: 0.15%

Best surface / Ra: Ra 0.2μm

Min. D. R. O. resolution(mm): 0.005mm
