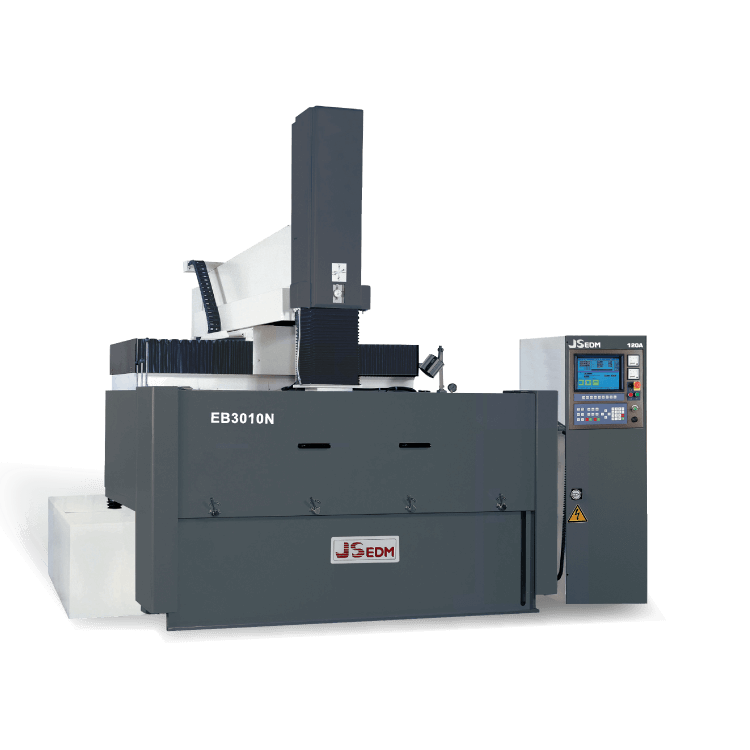

JSEDM EB3010N ZNC Electric Discharge Machine (800 mm3/min)

Capacity of work tank: 3900x1700x800mm

Work table size: 3100x1100mm

Longitudinal travel(X-axis): 3000mm

Cross travel(Y-axis): 1000mm

Z axis travel(Z-axis+W-axis): 600mm

Distance between platen to table: 660~1260mm

Max. Electrode weight: 500kgs

Max. Work piece weight: 16000kgs

Fluid tank capacity: 5800L

Machine outside dimensions(WxDxH): 6000x4600x3620mm

Machine weight: 19000kgs

Max. Machining current: 120A

Max. Power input: 13KVA

Max. Machining rate: 800 mm3/min

Min. Electrode wear ratio: 0.15%

Best surface / Ra: Ra 0.2μm

Min. D. R. O. resolution(mm): 0.005mm
