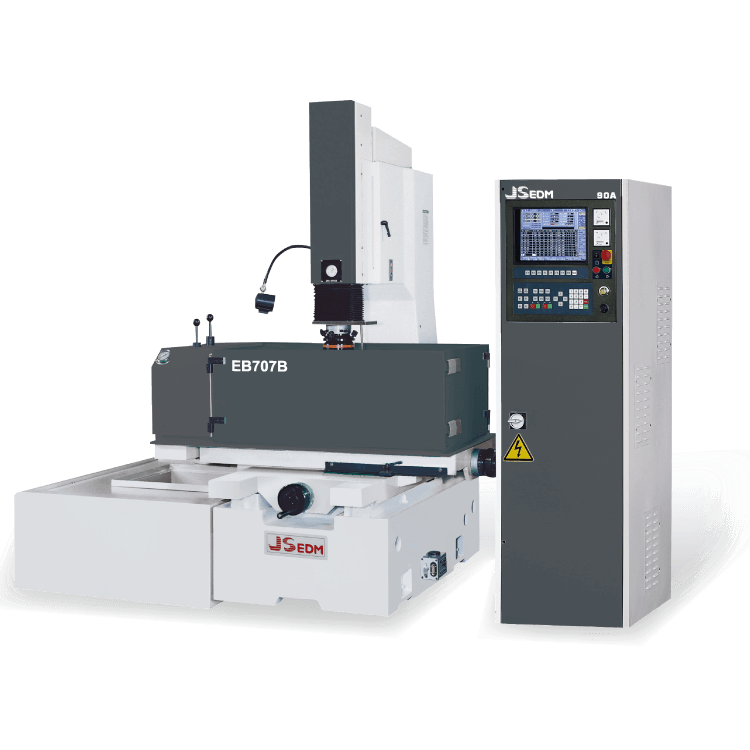

JSEDM EB707B ZNC Electric Discharge Machine (400; 600 mm3/min)

Capacity of work tank: 1170x700x430mm

Work table size: 800x450mm

Longitudinal travel(X-axis): 500mm

Cross travel(Y-axis): 400mm

Z axis travel(Z-axis+W-axis): 200+300mm

Distance between platen to table: 240~740mm

Max. Electrode weight: 150kgs

Max. Work piece weight: 1500kgs

Fluid tank capacity: 550L

Machine outside dimensions(WxDxH): 2800x1600x2250mm

Machine weight: 2000kgs

Max. Machining current: 60A; 90A(Optional)

Max. Power input: 7KVA; 10KVA

Max. Machining rate: 400; 600 mm3/min

Min. Electrode wear ratio: 0.15%

Best surface / Ra: Ra 0.2μm

Min. D. R. O. resolution(mm): 0.005mm
