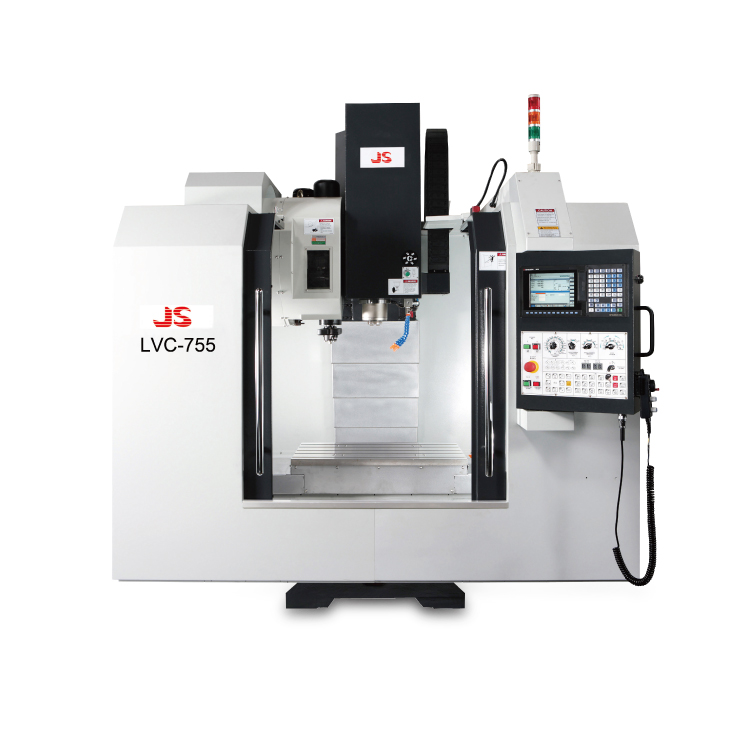

JSEDM LVC-755 MVC Vertical Machine Center (10000 / 12000 / 15000 RPM)

X axis travel: 700 mm

Y axis travel: 510 mm

Z axis travel: 550 mm

Spindle nose to table surface: 130-630 mm

Spindle center nose to column: 600 mm

Linear way - X axis: RGW30

Linear way - Y axis: RGW30

Linear way - Z axis: RGW35

Ball screw - X axis: R32XP12

Ball screw - Y axis: R32XP12

Ball screw - Z axis: R32XP12

Table work area: 700 x 500 mm

Max. table load: 350 kg

Dimension of T-slot: CD100 x 16 x 5T

Bore diameter: BT40

Spindle taper: ISO40

Spindle motor: 10 HP (Mitsubishi or Fanuc)

Spindle diameter: Ø65 mm

Belt: 10000 RPM

Directly (OP): 10000 / 12000 / 15000 RPM

Rapid feed rate (X / Y / Z): 36 / 36 / 24

Motor (X / Y / Z): 2.0 / 2.0 / 3.0 KW

Max. tool length: 250

Max. tool weight: 6 kg / 13.2 lbs

Number of tools: 240 pcs

Tool exchanging time: 10 / 4 sec

Min / Max. air pressure: 4 kg / 6cm²

Coolant tank capacity: 150 L

Net weight: 4200 kg

Gross weight: 4500 kg

Floor space requirement (L x W x H): 210 x 228 x 325 cm

Packing size (L x W x H): 240 x 228 x 245 cm

Container: 40"HQ
