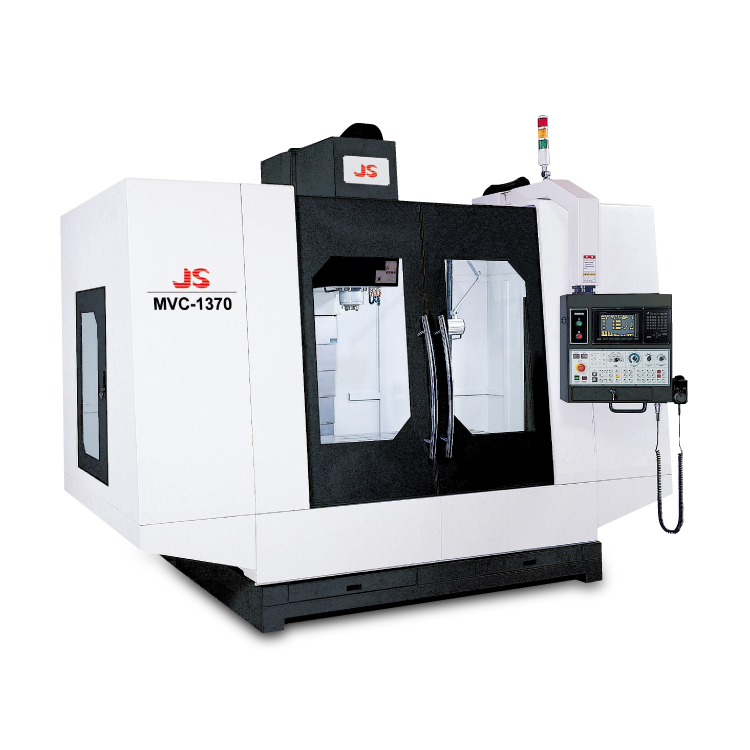

JSEDM MVC-1370 MVC Vertical Machine Center (8000 rpm / 6000 rpm)

X axis travel: 1300 mm

Y axis travel: 700 mm

Z axis travel: 700 mm

Spindle center to column: 760 mm

Spindle nose to table surface: 150-850 mm

Table work area: 1200 x 700 mm

Dimension of T-slot: CD 125 x 18 x 5T mm

Max. table load: 1200 kg

Spindle taper / Bore diameter: BT40 / BT50

Driving method: Belt

Spindle motor-cont / 30 min: 20 HP (Mitsubishi or Fanuc)

Spindle speed: 8000 rpm / 6000 rpm

Rapid feed rate - X x Y x Z: 20 x 20 x 15 m/min

X x Y x Z ball screw: 50 x 12B2 (dia. x pitch)

Motor (XYZ): 3.5 / 3.5 / 3.5 KW

Max. tool length: 250 mm (9.8") x 89 mm (3.5")

Max. tool weight: 6 kg / 13.2 lbs

Number of tools: 20 / 24 pcs

Tool selection method: Bi-direction & Min Path

Min. / Max. air pressure: 4 kg / 6 cm²

Coolant tank capacity: 450l

Net weight: 10400 kg

Gross weight: 11000 kg

Floor space requirement (L x W x H): 340 x 248 x 280 cm

Packing size (L x W x H): 700 x 228 x 250 cm / 385 x 310 x 315 cm

Container: 40"HQ split into 2 pallets / 20"FR
