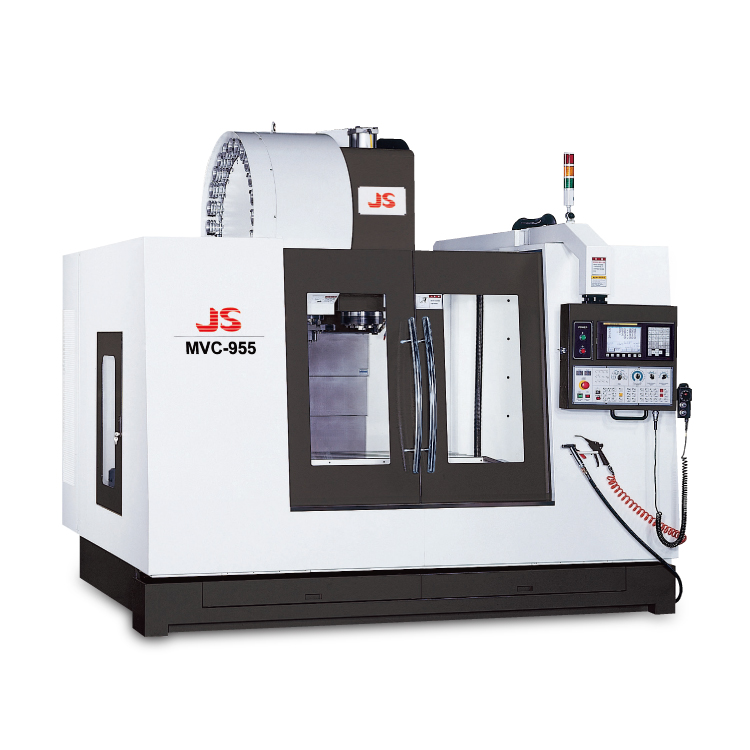

JSEDM MVC-955 MVC立式加工制造中心 (8000rpm)

X axis travel: 900 mm

Y axis travel: 550 mm

Z axis travel: 530 mm

Spindle center to column: 600 mm

Spindle nose to table surface: 150-680 mm

Table work area: 1000 x 510 mm

Dimension of T-slot: CD 100 x 18 x 5T mm

Max. table load: 600 kg

Spindle taper / Bore diameter: BT40

Driving method: Belt

Spindle motor-cont / 30 min: 15 HP (Mitsubishi or Fanuc)

Spindle speed: 8000rpm

Rapid feed rate - X x Y x Z: 20 x 20 x 15 m/min

X x Y x Z ball screw: 40 x 10B2 (dia. x pitch)

Motor (XYZ): 2.5 / 2.5 / 3.5 KW

Max. tool length: 250 mm (9.8") x 89 mm (3.5")

Max. tool weight: 6 kg / 13.2 lbs

Number of tools: 20 / 24 pcs

Tool selection method: Bi-direction & Min Path

Min. / Max. air pressure: 4 kg / 6 cm²

Coolant tank capacity: 250 l

Net weight: 7000 kg

Gross weight: 7300 kg

Floor space requirement (L x W x H): 261 x 210 x 235 cm

Packing size (L x W x H): 265 x 228 x 245 cm

Container: 40" HQ
