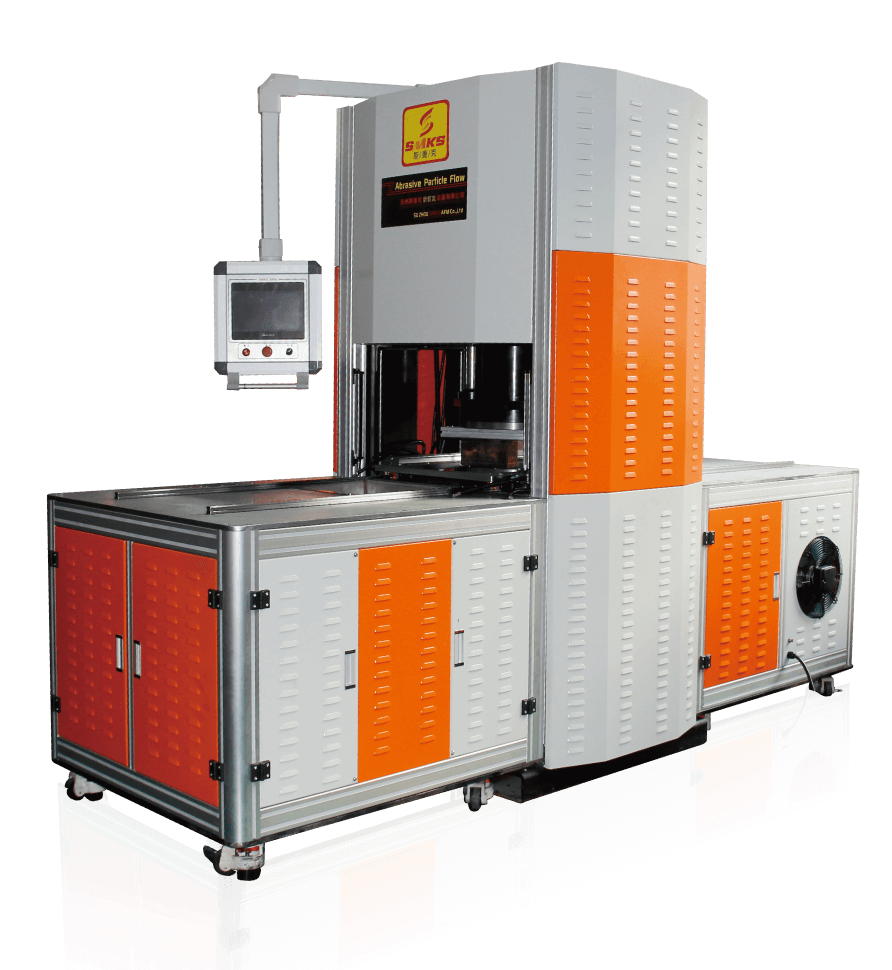

JSEDM SMKS-B800 De-Burring Machine (Ø252 mm)

Height: 2550 mm

Width: 3200 mm

Depth: 1400 mm

Weight: 2.5 T

Remarks: Specific parameters based on the actual product

Table Height: 1150 mm

Fixture Operation Height: 310 mm

Clamp Operation Width: 800 mm

Grinding Medium Cylinder Tank Diameter: Ø252 mm

Capacity of Grinding Medium Tank: 25 kg

Operation Panel: Touch screen

Control Circuit: PLC

Processing Pressure (adjustable): 1~14 Mpa

Motor Power: 10 HP

Machine Voltage: 380 / 3PH
