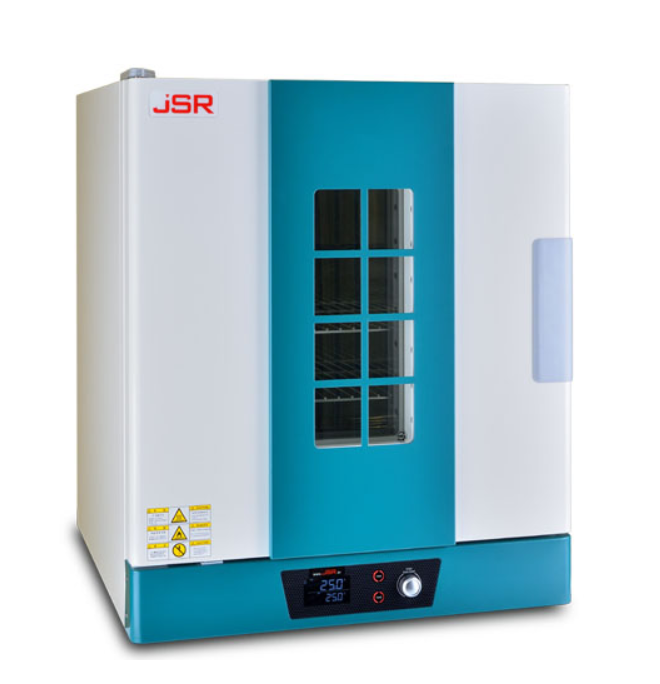

JSR JSON-050 自然对流烘箱 (48L)

Heating System: Natural Convection

Temp. Range   : ambient + 10 oC ~ 250 oC

Accuracy: ± 0.3 oC at 120 oC

Uniformity: ± 2.0 oC at 120 oC

Controller

Microprocessor PID Control Auto START / STOP Timer

3-Zone Temperature Control Algorithm

3-Point Temperature Calibration

1-Point Temperature Offset Calibration

Sensor: Class A Pt-100 Ω Sensor

Power Requirement: 230±10% VAC 50/60Hz 1-Phase

Power Consumption: 1.3 kW

Chamber Volume: 48 L

Inner Dimensions (WxDxH): 400x300x400 mm

Outer Dimensions (WxDxH): 500x525x710 mm

No. of Shelf Include: 2 ea
