Ambient temperature: (23±2) °C
Relative humidity: （50±10）%
1. Capacitance range: 0～1.111110μF
2. Minimum step size: 1pF
3. Digits of reading: Six-digit decimal system
4. Zero-switch capacitance: <0.000005pF
5. Error: ±0.01%
6. Loss tangent (D): ≤5×10-4
7. Output mode: Four-terminal BNC output
8. Calibration frequency/operating frequency (f): 1,000Hz
9. Maximum operating voltage (U): ≤100V
10. Dimension: 450mm×400mm×140mm

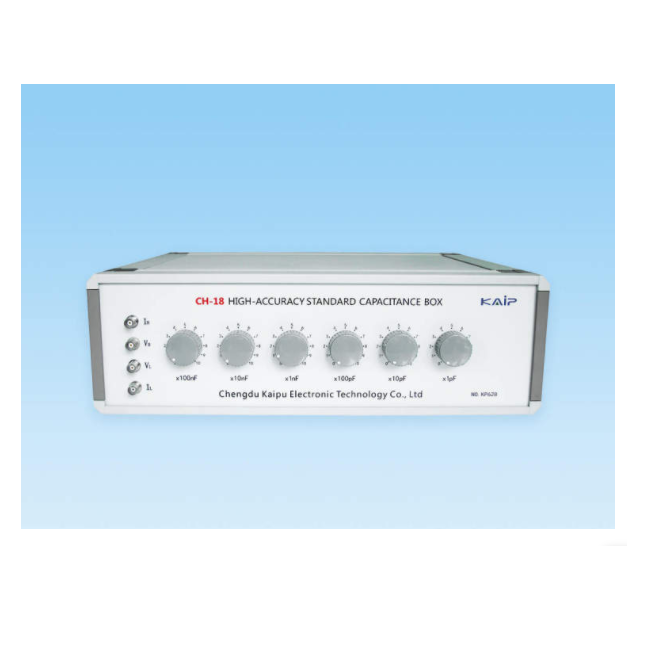

CH-18 precision decade capacitance box adopts four-terminal output mode, and realizes wide capacitance range of 1pF～1.111110μF with six-digit decade changeover switch. Any of the decade readings within the wide range has equal high capacitance accuracy and stability (±0.01%). The capacitor box has excellent shielding, and negligible zero-switch capacitance (＜0.000005pF), which is superior to the similar products available on market. The reading value of the capacitance is free from the influence of zero-switch capacitance. It’s not needed to deduct the zero-switch capacitance from the reading value.
This capacitance box is suitable for verification of RLC measuring instruments, fuel measuring instruments, cable coupling capacitance measuring instruments, and etc. It can be used as standard capacitance measuring instrument in measurement technology institutes, research institutes, factories, universities, and etc.
