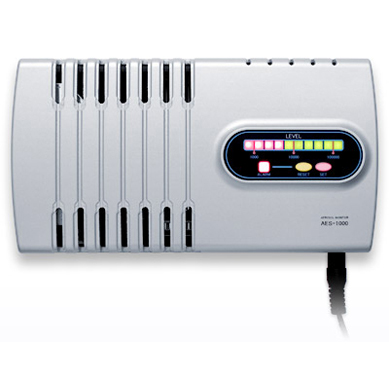

Kanomax AES-1000 颗粒监测仪

Manufacturer: Kanomax

Model: AES-1000

Origin: Japan

Warranty: 12 months


Display: 10 x LED lights shows equivalent of Class 100 ~ Class 100,000

Detection method: Light Scattering

Min. detectable size: 0.5 µm

Air Sampling method: Updraft airflow generated by built-in heater enables air sampling of approx. 0.26 gal per minutes

Cleanliness Class: From level of equiv. of ISO5 / Class 100 ~ ISO8 / Class 100,000

Alarm Display: Alarm LED light comes on when reaching to setting level

Alarm Output: TTL open collector output in sync with alarm display

Interface: Ethernet x 1 port

PowerSupply: DC12 V +/-10% 500mA

Operating Condition: 0ºC~40ºC 30% RH~80% RH

Dimensions: 7.5 x 4.0 x 1.5 inches (192 x 102 x 37 mm)

Standard Accessories: Meter, AC adapter, Mounting plate, Operation manual


Details

- Features:

Stable and sensitive detection for Particulates of 0.5 microns and larger. Easy-to-read air cleanliness level, equivalent of ISO5 / Class 100 – ISO8 / Class 100,000.

Unique air sampling method using “heater” to generate updraft, preventing choked flow. Suction pump is not necessary.

Alarm comes on when the setting level goes beyond the required cleanliness, while monitor gives alarm signal output.

Link to Ethernet system with purpose of monitoring at multiple location.

Long life laser. 20,000 hours.

Compact and light, easy installation. Low cost.

- Applications:

Monitor and verify clean rooms/Pharmaceutical/Semi Conductor/Food Industry.

Buffer zero monitoring and management.

IAQ investigation.
