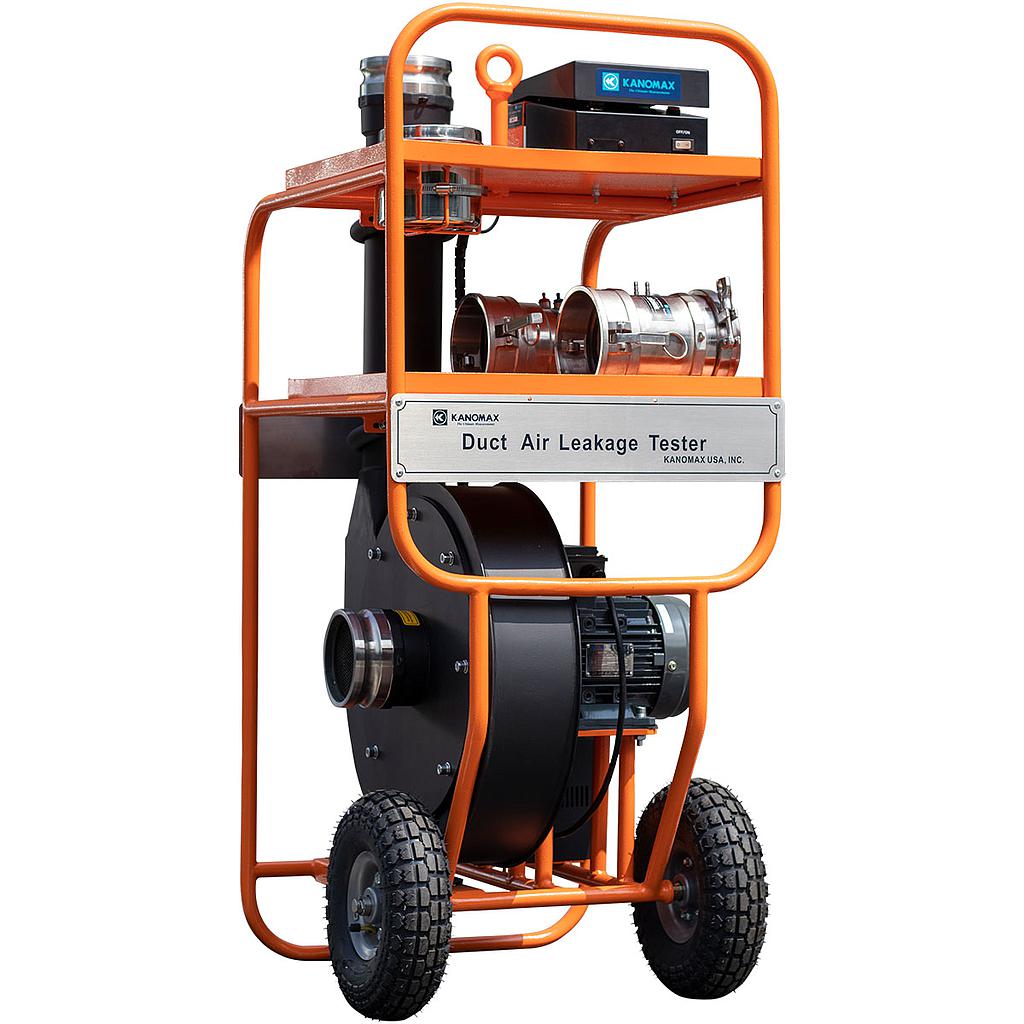

KANOMAX DALT 6900 管道漏风量测试机 (220-240V, 10A)

Manufacturer: Kanomax

Model: DALT 6900-1E

Origin: Japan

Warranty: 12 months


- Air Flow:

Ranges: Flow Grid: 2 to 360 CFM (36 to 640 m3/h); Nozzle: 2 to 21 CFM (4 to 36 m3/h)

Accuracy: 2.5 % of READING ± 0.1 m3/h

Resolution: 0.01 m3/h

- Pressure:

Ranges: ± 10 in.wg (± 2500 Pa) Duct Static Pressure

Accuracy: 1% of READING ± 1 Pa

Resolution: 0.1 Pa

- Temperature:

Ranges: 32 to 140 °F (0 to 60 °C)

Accuracy: ±0.5 °C

Resolution: 0.1 °C

- Absolute Pressure:

Ranges: 20.6 to 38.3 in.Hg (70 to 130kPa)

Accuracy: 2% of READING

Resolution: 0.1kPa

Power Source: 220-240V, 1 Phase, 50/60Hz, 10A

Weight: Approx. 75kg (165lbs)

Dimensions: W21 x D20 x H47 inches (54 x 50 x 120 mm)

Data logging: Up to 1000 measurements

- General Specifications:

Interface: USB

Datalogging: YES

What’s Included: Main unit, 2x Test Fixture, 12 feet of Flexible Duct, Silicone Pressure Tube, Power Cord, Operation Manual, Calibration Certificate

- Surface Area Coverage:

Testing surface area (at 4 in. w.g.): Up to 10500 sq. ft.



Details

Featrure:

Easy transport to the job with a small footprint and pneumatic tires allow for smooth movement

Step-by-step test configuration and automated leakage testing based on the SMACNA Test Manual Capable of both positive and negative duct leakage testings

Meets and/or exceeds the following standards for testing:

SMACNA HVAC

BS EN 12237:2003 EU

BS EN 1507:2006 EU

DW/143 EU

Eurovent 2/2 EU

GB50243 GB

Datasheet


Manual
