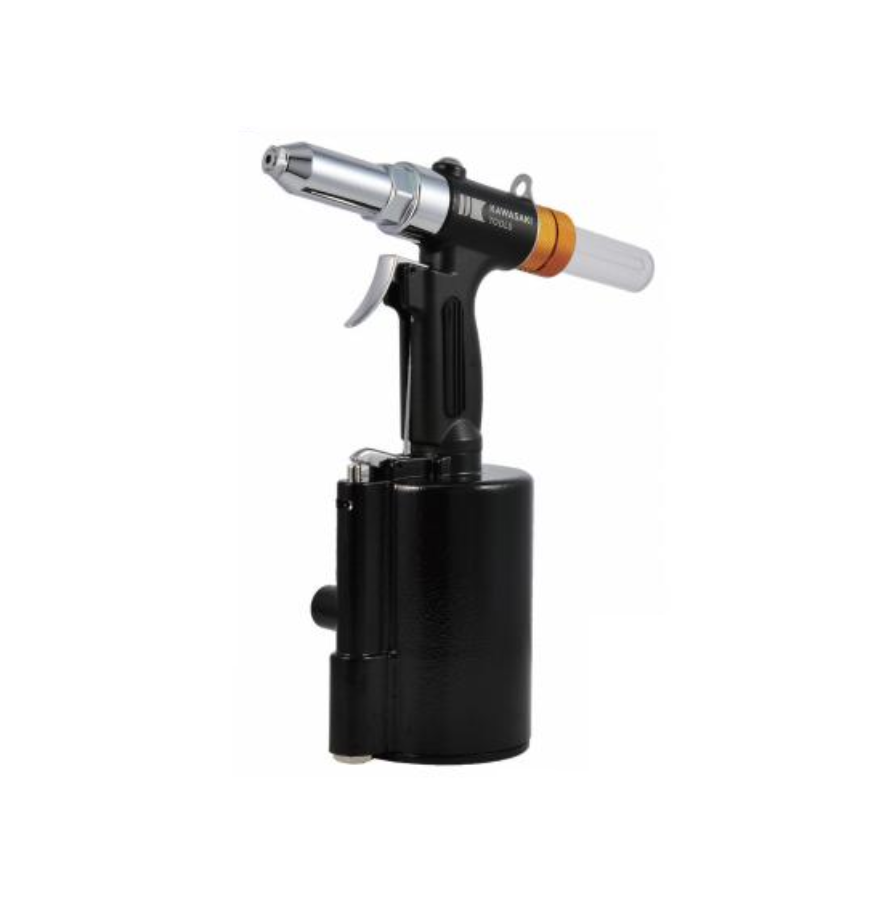

KAWASAKI KPT-0617 铆钉机(3/16")

Traction Power at 85 psi: 1045 / 2299 kgf/lbf

Stroke length: 16 mm

Stainless rivets capacity:

MIN: 2.4 mm

MAX: 4.8 mm

Working air pressure: 78 - 85 psi

Nosepiece: 2.4, 3.2, 4.0, 4.8

Air Consumption: 1.48 l/stroke

Width x Height: 165 x 270 mm

Net Weight: 1.5 kg

Air hose size (ID): 6.5 mm

Air Inlet (PT): 1/4"

Datasheet
