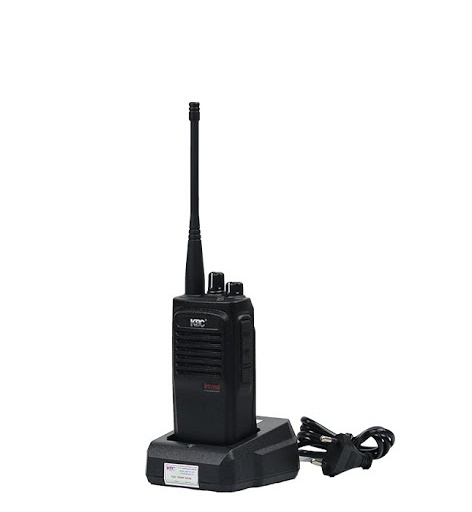

KBC PT-169/196 个人对讲机 (5W; 16 CH)

General

Frequency range: UHF 400 ~ 480MHz / VHF: 136 ~ 174MHz

Output Power: High: 5W; Low: 1W

Number of channels: 16 channels

Channel separation: Wide: 25KHz; Narrow: 12.5KHz

Antenna Impedance: 50Ω

Operating voltage: DC 7.4V

Battery: 2500mAh

Dimensions: 132x62x38 (mm)

Weight: 250g

Emitter

Output power: 5W

Modulation Sensitivity: 12 ± 5mV

Modulation distortion: <1%

Frequency stability: ± 1.5 x10^-6 ppm

Adjacent power:> 65dB

Receiver:

Sensitivity: <-126dBm

Adjacent selective channel:> 55bB

Modulation:> 55dB

Rated output power: 1000mW at 16Ω

Sound distortion: <5%

Sound power: 1W

Accessories: Charger, Belt, Antenna, Li-on battery
