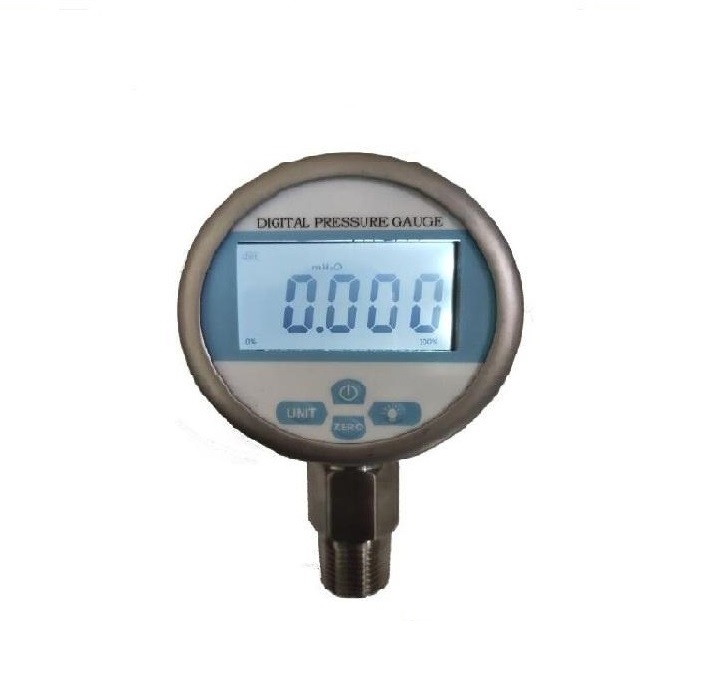

KDS DPR280 数字压力记录器

Pressure range Vacuum: (0~-100)kPa

                          Compound: (-0.1~0.1)MPa (-0.1~0.25)MPa (-0.1~0.4)MPa (-0.1~0.6)MPa

                                             (-0.1~1.0)MPa (-0.1~2.5)MPa, (-5~5)kPa (-10~10)kPa (-25~25)kPa (-50~50)kPa

                          Micro pressure: (0~5)kPa (0~10)kPa (0~25)kPa (0~50)kPa (0~100)kPa

                          Conventional: (0~160)kPa (0~250)kPa (0~400)kPa (0~600)kPa (0~1)MPa (0~1.6)MPa...(0~100) MPa

                          Differential pressure: (0~10...25...40...60...100...250...400...600)kPa, (0~1...1.6)

Mounting interface: M20*1.5G1/4 NPT1/4

Accuracy class: 0.4 %f.s 0.2%f.s

Display digits: 4-digit LCD display

Back light: white backlight

Size: 80mm diameter 48mm thickness

Power supply: 3V (two 7th battery)

Power consumption: <0.005W

Measuring medium: Water, oil, gas, non-corrosive medium for stainless steel
