KDS KT1814 手持式热电偶校准器 (0.05%F.S, 0~30V)

Accuracy: 0.05%F.S
DC V:  0~30 V
DC mV:  0~100 mV
Thermocouple: E,J,K,T,B,R,S,N
Waterproof protection: IP67 grade
Weight :  0.35kg
Dimensions: 185mm×93mm×47mm

Detail

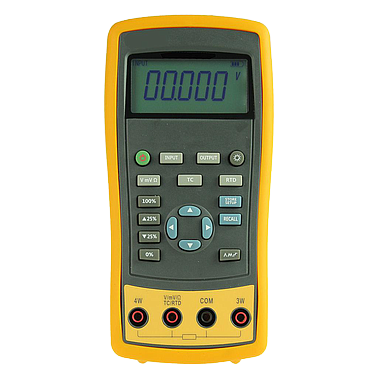

KT1814 Hand-held Thermocouple Calibrator integrates measurement and output of voltage, mV signal, thermocouple into one. With LED, the data could be showed more clearly.

Feature
Accuracy: 0.05%F.S
Simulate thermocouple in the form of temperature
Measurement and output of thermocouple all supply auto and manual temperature compensation
Perfect performance on waterproof protection: IP67 grade
In case of connecting 220V with automatic over voltage protection function
With manual stepping, automatic stepping and 0 ~ 100% output of phase step and ramp function.
LED with white backlight
Weight : 0.35kg
Dimensions: 185mm×93mm×47mm

Technical Specification

Measure and Source Functions

Function

Measure

Source

DC V

0~30 V

Not available

DC mV

0~100 mV

0~100 mV

Thermocouple

E,J,K,T,B,R,S,N

E、J、K、T、B、R、S、N

Others

Stepping output, ramp, phase step output, user-defined range
