KDS KT1825 多功能过程校准器 (0.05%F.S)

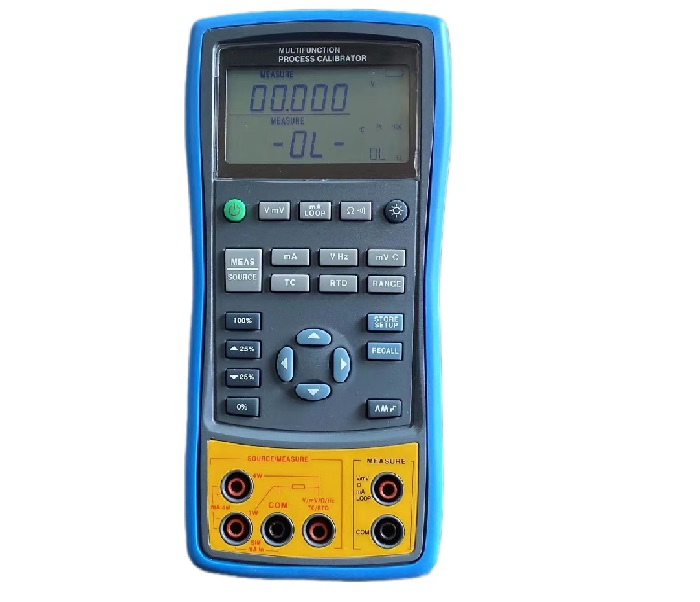

KT1825 Multifunction Process Calibrator is a high precision portable instrument. Special design for process control, it can use on site. It can measure and source pressure, resistance, current, frequency, thermal resistance, thermocouple and these second instrument etc.

Feature
Accuracy: 0.05%F.S
Measure and source voltage, current (active or passive), resistance and frequency
Simulate thermal resistance and thermocouple in the form of temperature

Measurement and output of thermocouple all supply auto and manual temperature compensation
May simulate two-wire system transmitter
Isolated channel, support measurement and output
Automatic identification of three-wire or four-wire connection mode
Perfect performance on waterproof protection: IP67 grade
In case of connecting 220V voltage with automatic over voltage protection function
With manual stepping, automatic stepping and 0 ~ 100% output of phase step and ramp function
LED with white backlight
Weight :0.65kg
Dimensions:200mm×96mm×47mm

Technology specification

Measure and Source Functions

Function	Measure	Source
DC V	0～50V (the upper display ± 30V)	0～10V
DC mA	0～24mA (the upper display ± 24mA)	0～24mA
Frequency	1.000Hz ～ 100.00kHz	0.00Hz～20.000kHz
Resistance	0～3200Ω	0～3200Ω
DC mV	0～100mV (the upper display ± 200mV)	0～100mV
RTD	Pt100, Pt1000, Cu50, Cu100	Pt100, Pt1000, Cu50, Cu100
TC	E, J, K, T, B, R, S, N	E, J, K, T, B, R, S, N
Others	Loop supply, Step, Ramp, Dual display
