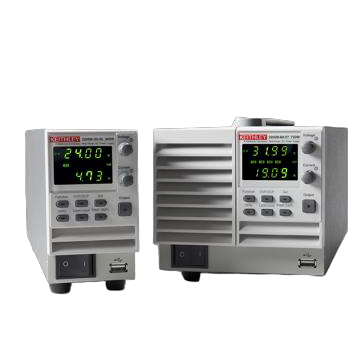

KEITHLEY 2260B-80-13 Programmable DC Power Supplies (80V, 13A, 360W)

- OUTPUT RATINGDC
+ voltage 0–80 V
+ Current 0–13.5 A
+ Power 360 W
- RIPPLE AND NOISE
+ Cv p-p 60 mV
+ Cv rms 7 mV
+ CC rms 27 mA
- PROGRAMMING ACCURACY
+ voltage 0.1% + 10 mV
+ Current 0.1% + 10 mA
- READBACK ACCURACY
+ voltage 0.1% + 10 mV
+Current 0.1% + 10 mA
-FRONT PANEL DISPLAY ACCURACY
+ voltage 0.1% + 2 counts
+ Current 0.1% + 2 counts
interface: USB, GPIB, LAN
In put: 85VAC-265VAC
weight: 4.3kg

Details

download datasheet

  • 360W and 720W versions with voltage up to 80V and current up to 72A
  • Combine power supplies in serial and parallel combinations to expand voltage and current outputs up to 160V and 216A
  • Programmable voltage or current rise and fall times from 0.1V/s to 160V/s or 0.01A/s to 144A/s prevent damage from inrush current to low impedance loads
  • Constant current priority setting reduces voltage and current overshoot when powering LEDs
  • Simulate a battery´s output characteristics with a programmable output resistance
  • Display delivered power with either the output current or the output voltage
  • Choose from analog control, USB, LAN, or an optional GPIB interface for automated control
  • Save bench and test system space: six 71mm-wide 360W units or three 143mm-wide 720W units fit in a standard rack width
