Output Voltage: +100 to +10,000 V DC/ 1.000 mA DC
VOLTAGE SET ACCURACY: ±0.06% of full scale.
VOLTAGE DISPLAY ACCYRACY: Voltage set accuracy ±1V, typical (±2V, maximum).
VOLTAGE RESOLUTiON: 1V (set and display).
VOLTAGE LIMITT RANGE: 0 to 100% full scale.
VOLTAGE REGULATION 2: Line: 0.001% for ±10% line voltage change.
Load: 0.04% for 100% load change, typical.
OUTPUT RIPPLE (300Hz–300kHz): 0.01% of full scale, VRMS.
DISCHARGE TIME (to 0V under full load) :: 1 second to under 10V.
DISCHARGE TIME (no load) : <6 seconds="" to="" 1="" of="" full="" scale="" voltage="" with="" no="" load="" typical="" br=""> SETTLING TimE : <4 seconds="" to="" within="" 1v="" of="" the="" final="" value="" br=""> RECOVERY TimE : 120ms for 40% step change in load current (typical).
CURRENT LIMIT RANGE: 0 to 105% of full scale.
CURRENT SET ACCURACY: 0.5% of full scale.
CURRENT RESOLUTION: 1µA.
CURRENT DISPLAY AccuRAcy: ±1µA, typical (±2µA, maximum).
TRIP CURRENT RANGE: 10µA to 105% of full scale (excluding stored output charge).
OUTPUT STORED CHARGE: <20µC maximum.
TRIP RESPONSE TIE: <10ms.
OUTPUT SCALE: 0 to +10V for 0V to full scale.
CURRENT RATiNG: 10mA maximum.
OUTPUT IMPEDANCE: 100Ω.
ACCURACY: ±0.2% of full scale with a 1MΩ load, minimum.
UPDATE RATE: 87.5Hz.
EXTERNAL VOLTAGE SET
INPUT SCALE: 0 to +10V for 0 to full scale.
INOUT POWER: 75 watts.
INPUT VOLTAGE: 90V–264VAC, 47 to 63Hz.
WEIGHT: 3.7kg (8 pounds).
- Source voltages up to 10kV
- 1µA current measurement resolution
- Low noise for precision sourcing and sensitive measurements
- Safety interlock controls high voltage output
- IEEE-488 programmable
- Protection module prevents damage to low voltage instrumentation

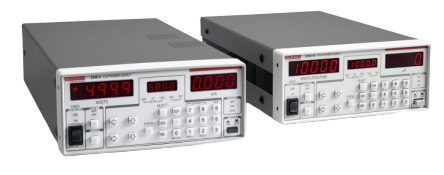

Series 2290 High Voltage Power Supplies facilitate high voltage device and material testing, as well as high energy physics experimentation. The Model 2290E-5 5kV Power Supply provides voltage outputs up to 5000V, and the Model 2290-10 10kV Power Supply offers up to 10,000V. The Model 2290E-5 has a 5mA current capacity, and the Model 2290-10 has a 1mA current capacity. These supplies measure both output voltage with 1V resolution and output current with 1μA resolution. In addition to the voltage and current output displays, a third display shows one of four settings: output voltage, voltage limit, current limit, or current trip. These values can be set precisely with the front panel keypad. The settings can also be programmed over the IEEE-4888 interface, or the output voltage can be set with an analog control voltage.
