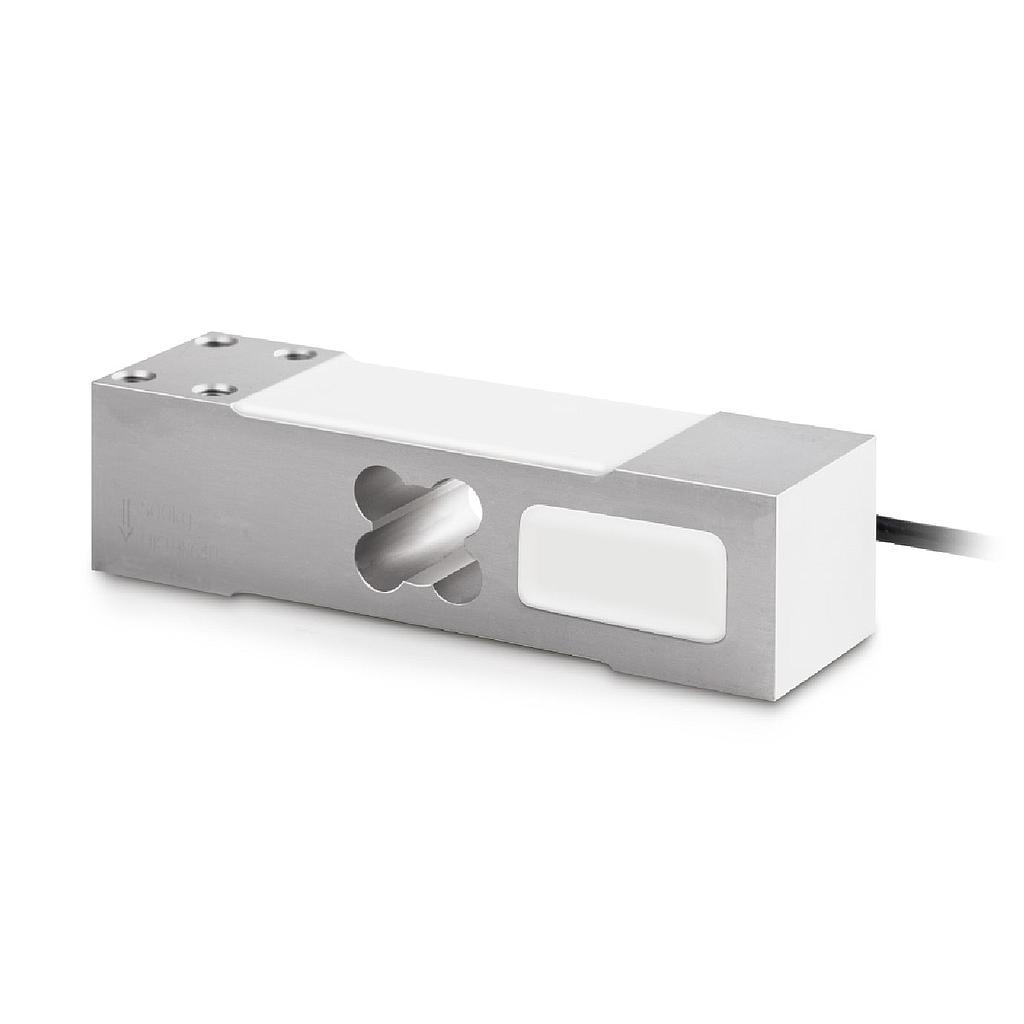

KERN CP 100-3P2 Singlepoint load cell (100 kg)

*Construction

Cable length: 2 m

Dimensions (W×D×H): 150 mm x 35 mm x 40 mm

Dimensions of weighing plate (W×D×H): 400 mm x 400 mm x 0 mm

*Measuring system

Combined Error: 0,023 %

Load cell connection: 4-wire

Nominal sensitivity: 2 mV/V

OIML class: C3

Resolution Load cell – Verifiable: 3000 e

Weighing capacity [Max]: 100 kg

Y value: 10000

*Environmental conditions

Maximum operating temperature: 65 °C

Maximum ambient temperature: 40 °C

Minimum operating temperature: -35 °C

Minimum ambient temperature: -10 °C
