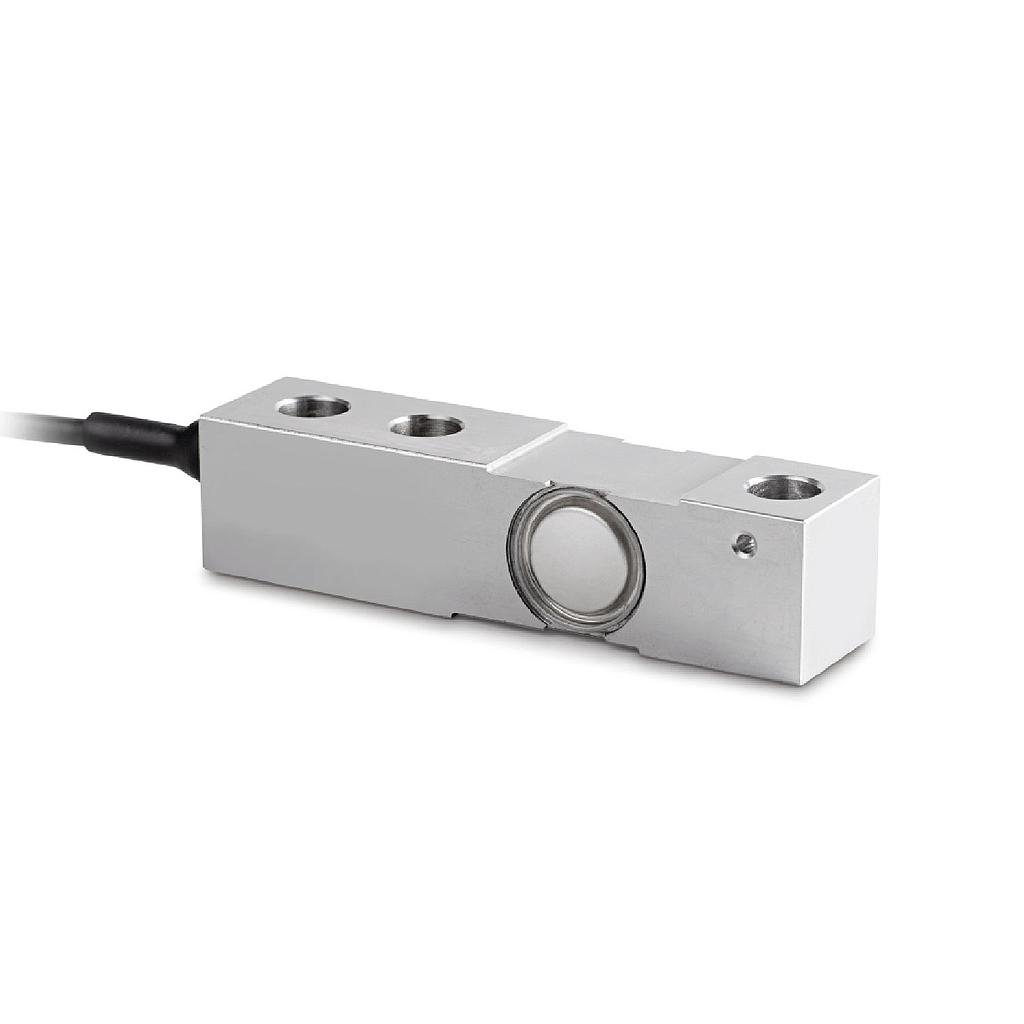

KERN CT 1000-3Q1 剪力束测量仪 (1000 kg)

*Construction

Cable length: 5 m

Dimensions (W×D×H): 130 mm x 31,5 mm x 31,5 mm

*Measuring system

Combined Error: 0,017 %

Load cell connection: 6-wire

Nominal sensitivity: 2 mV/V

OIML class: C3

Resolution Load cell – Verifiable: 3000 e

Weighing capacity [Max]: 1000 kg

Y value: 10000

*Environmental conditions

Maximum operating temperature: 65 °C

Maximum ambient temperature: 40°C

Minimum operating temperature: -35 °C

Minimum  ambient temperature: -10 °C
