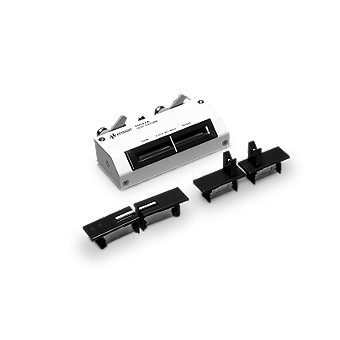

KEYSIGHT 16047A 轴向和径向试验夹具 (13 MHz, for E4980A/AL, E4981A, E4990A)

Applicable instruments: E4980A/AL, E4981A, E4990A

Frequency: DC to 13 MHz

Maximum voltage: ±42 V peak max. (AC+DC)

Operating temperature: 0 to 55°C

Terminal connector: 4-Terminal pair, BNC

DUT connection: 4-Terminal

Dimensions (approx.): 124 (W) x 31 (H) x 62 (D) mm

Weight (approx.): 205 g

Furnished accessories: Description: P/N x Qty.

Module for axial lead: 16061-70022 x 2

Module for radial lead mounting on fixture: 16061-70021 x 2

Module for short radial lead: 16047-65001 x 2

Operating note: 16047-90011 x 1


16047A-701: Add Shorting plate P/N (ordering number) 16047-00640
