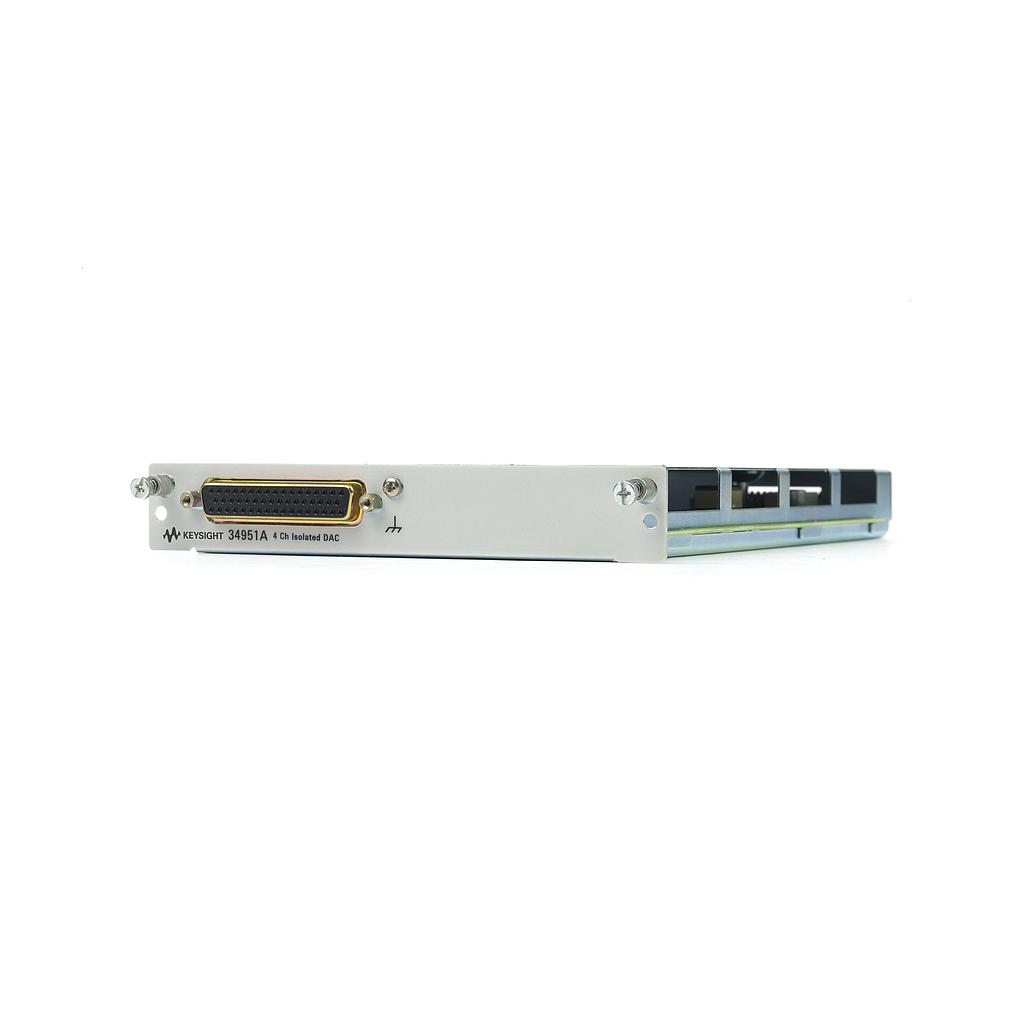

KEYSIGHT 34951A 用于34980A的带波形存储器的D/A转换器 (4-ch, 200kHz, 16 bits)

Description: 4-channel isolated D/A converter with waveform memory (DMM option required for calibration)

Output DC voltage up to ± 16 V or DC current up to ± 20 mA.

Output waveforms with a 200 kHz update rate and 16 bits of resolution.

Use on-board memory to create point-to-point waveforms with more than 500,000 points.

Connectors: 1 – 50-pin Dsub, Female

Optional:

3495xT Terminal block with screw connectors

Y1135A – 1.5 m 50-pin M/F Dsub cable

Y1136A – 3 m 50-pin M/F Dsub cable

Y1141A – 50-pin male solder cup connector kit

Details

Datasheet


Brochure
