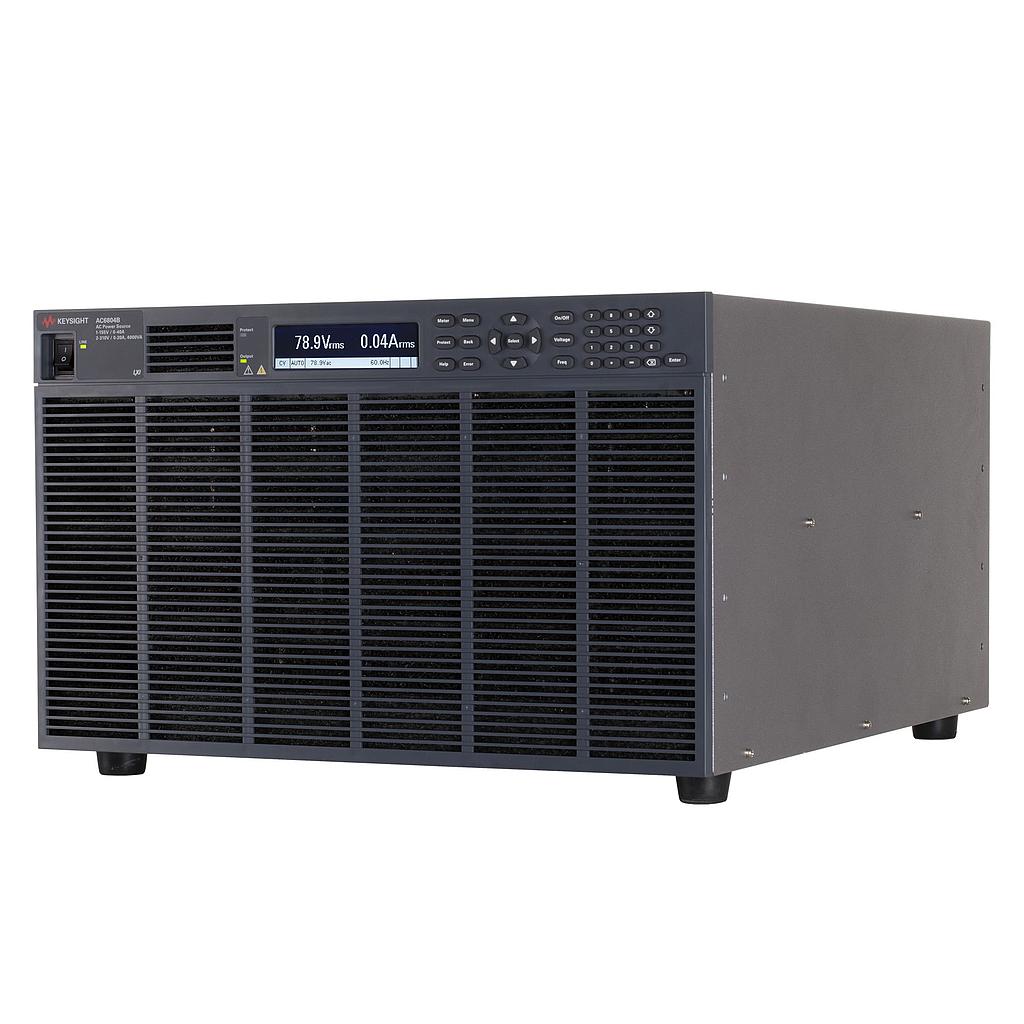

KEYSIGHT AC6804B 基礎型交流電源 (4000VA, 310V, 20A)

• Phases: Single-phase

• Maximum output Power: 4000 VA

• AC output mode:

Voltage range: 155 Vrms / 310 Vrms

Voltage setting accuracy 0.3%/0.25% full-scale

Maximum rms current: 40 A/20 A

Maximum peak current 120 A/60 A

Frequency 500 Hz

Measurements Voltage, current, power

• DC output mode:

Voltage range: 190 V/380 V

Max current: 32 A/16 A

Maximum instantaneous current: 96 A/48 A

Power capacity: 3200 W

• I/O: LAN/LXI Core and USB; Optional: GPIB
