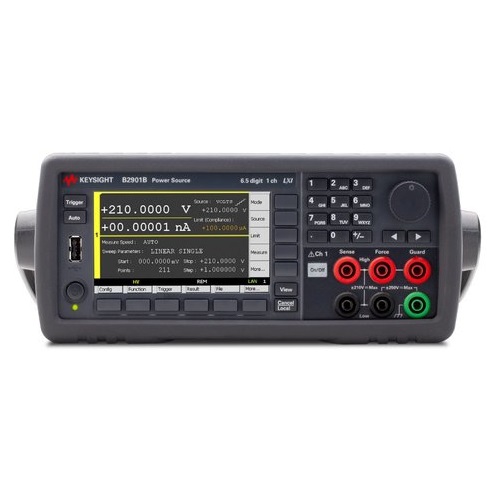

KEYSIGHT B2901B 精密源/测量装置 (1ch, 100fA, 210V, 3A DC/10.5A pulse)

Number of channels: 1

Max Output

DC: 210 V / 3.03 A

Pulse: 200 V / 10.5 A

Min source resolution: 1 pA / 1 µV

Min measure resolution: 100 fA / 100 nV

Min timing interval: 20 µs

Viewing mode: Single, graph

Operating: 0 °C to +55 °C, 30 % to 80 % non-condensing

Storage: -30 °C to 70 °C, 10 % to 90 % non-condensing

Interfaces: LAN, USB and GPIB

Net Weight: 6.0 kg

Datasheet

Configuration Guide
