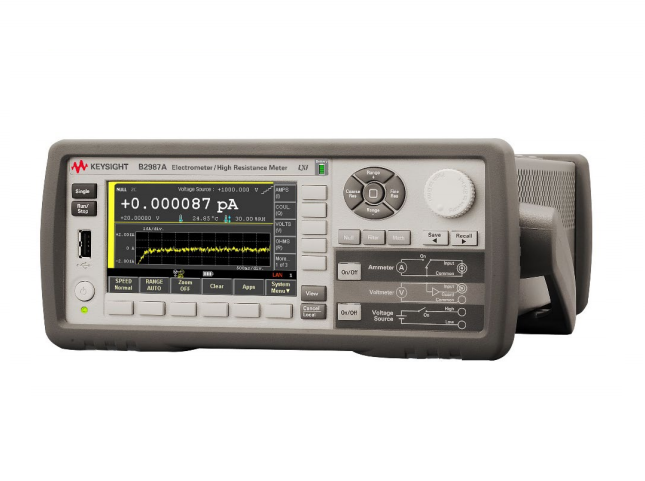

KEYSIGHT B2987A 静电表/高阻计

• Measurement resolution: 6½ digits

• Current measurement: 0.01 fA - 20 mA

• Minimum range: 2 pA

• Resistance measurement: Up to 10 PΩ

• Voltage measurement: 1 μV - 20 V

• Input resistance: > 200 TΩ

• Charge measurement: 1 fC - 2 μC

• Temperature measurement; Humidity measurement

• Voltage source: Up to ±1,000 V Up to ±1,000 V

• Minimum resolution: 700 μV

• Maximum reading rate: 20,000 rdg/s

• Li-ion battery

• Digital I/O Connector type: DSUB female 9 pins

• Computer interfaces: LXI; USB; GP-IB

• Temperature: 23°C ± 5°C

• Humidity: 30% to 80% RH

• Power supply: 90 V to 264 V, 47 Hz to 63 Hz, 80 VA maximum

• Dimensions:

Case: 88 mm (2U) x 213 mm (half width) x 348 mm

Working: 104 mm x 261 mm x 374 mm (with bumper)

• Weight: Net 5.1 kg; Shipping 9.2 kg
