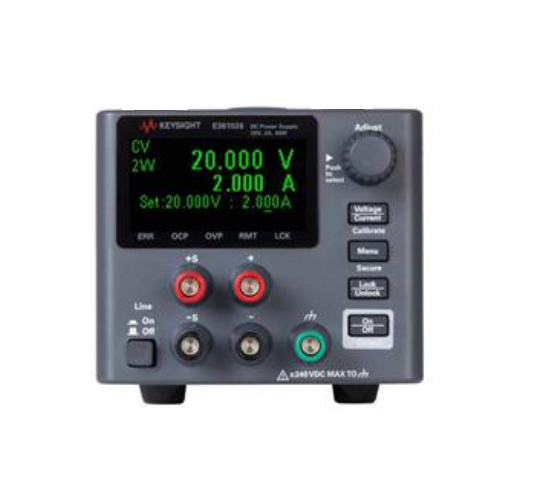

KEYSIGHT E36103B 直流电源 (20V, 2A)

• Max Output Rating: 20V, 2A

• Ripple & Noise (20 Hz to 20 MHz): RMS 0.8 mV; RMS 2 mA

• Overvoltage protection (OVP): 0.35 V

• Command processing time: < 10 ms

• Accuracy 12 months (23 ºC ± 5 ºC)

Voltage 0.05% + 8 mV

Current 0.05% + 1 mV

• I/O interfaces: LAN (LXI Core) and USB 2.0 FS (TMC488)

• AC input: 230 V input (± 10%), 47 to 63 Hz, 200 VA

• Overall dimension (H x W x D): 2U, 1/4 rack (102 x 106 x 365 mm)

• Weight: 3.7 kg

Detail

Datasheet
