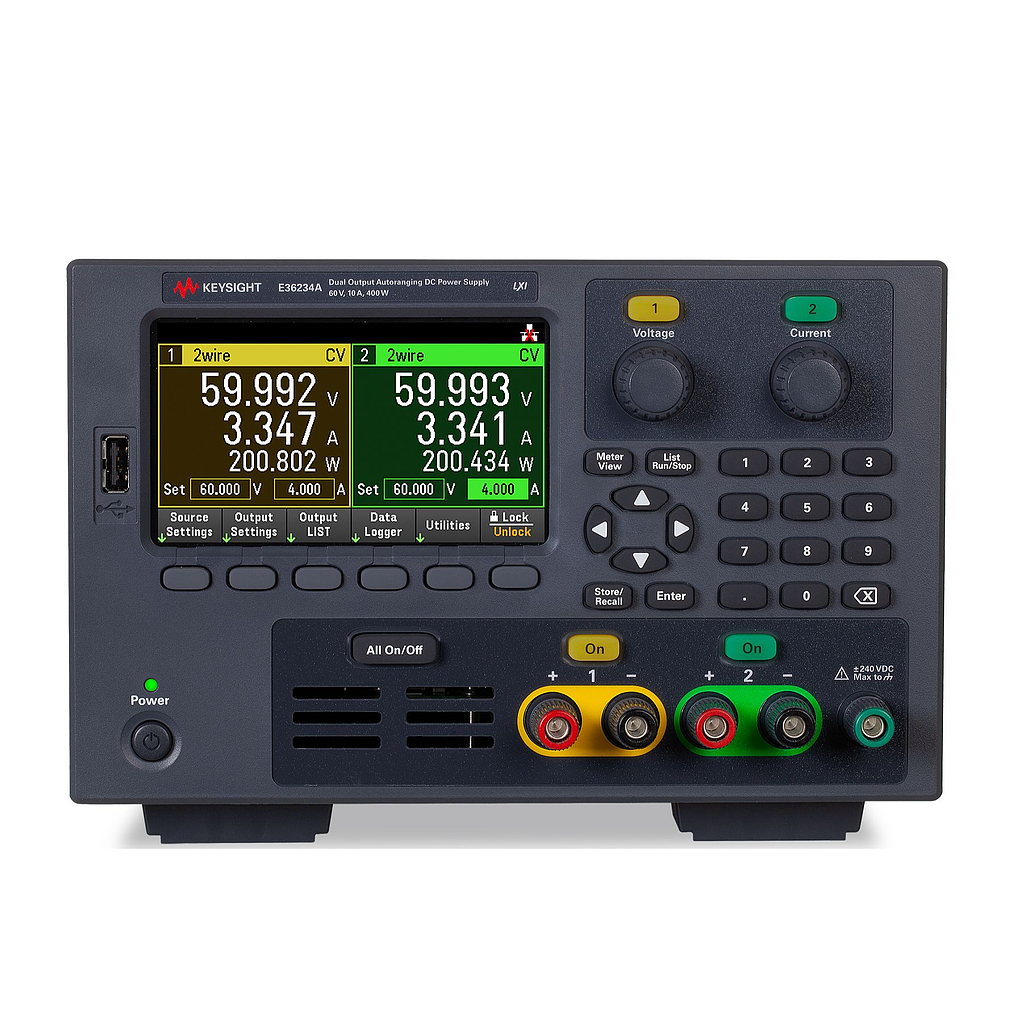

KEYSIGHT E36234A 自动测距工作台电源 (with GPIB E363GPBU)
制造商: KEYSIGHT Model: E36234A P/N: E36234A+E363GPBU - 报价要求
- 报价要求
- 联系
• Power output: 400 W
• Output Rating:
Output 1: 0 to 60 V, 0 to 10 A
Output 2: 0 to 60 V, 0 to 10 A
• Ripple & Noise (20 Hz to 20 MHz)
Normal Mode Voltage: <3.5 mVpp
Normal mode current: < 1 mArms
• Overvoltage protection (OVP): 0.2% +0.4V
• Command processing time: < 10 ms
• Accuracy 12 months (23 ºC ± 5 ºC)
Current 0.1% + 3 mA
Voltage 0.03% +8 mV
• AC input: ~100 VAC – 240VAC (± 10%), 50/60Hz, 800VA
• Icludes over voltage, over current, and over temperature protection
• Display: 4.3-inch LCD color
• Overall dimension, mm (H x W x D) 144.8 x 215.9 x 389.2
• Weight: 6.9 kg
