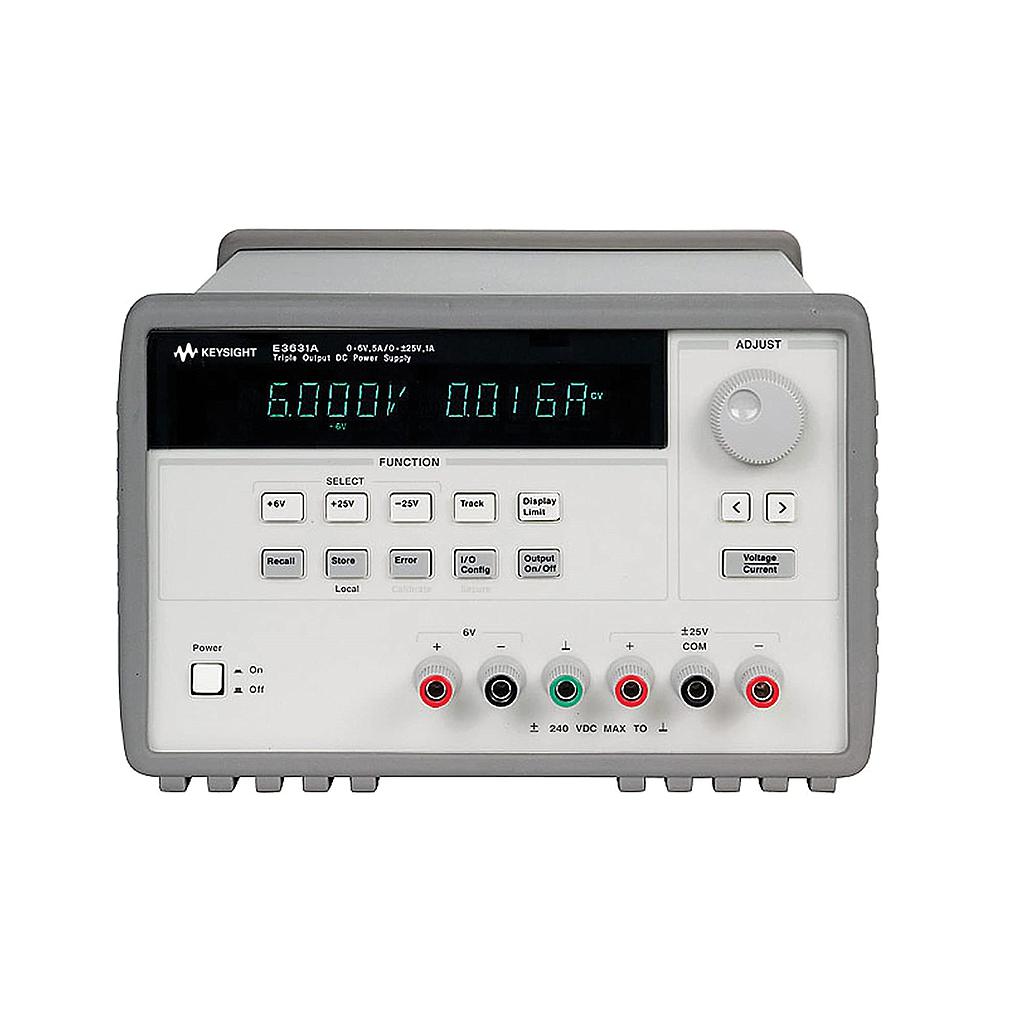

KEYSIGHT E3631A-3 可编程直流电源 (-25V/5A)

• Output: 0 to -25V/1A

• Load and line regulation: < 0.01% + 2 mV, < 0.01% + 250 μA

• Accuracy at 25°C ±5°C:

Programming: 0.05% + 20 mV và 0.15% + 4 mA

Readback: 0.05% + 10 mV và 0.15% + 4 mA

• Ripple and noise (20 Hz to 20 MHz):

Voltage: < 350 μVrms/2 mVpp

Current: < 500 μArms

• Power: AC 100-230V, 47-63Hz

• Processing time: < 50 msec

• Dimension: 213 x mm W x 133 mm H x 348 mm D

• Weight: 8.2 kg

• Interface: GPIB và RS232

• Included accessory : Power cord, Output voltage line, manual



Details
