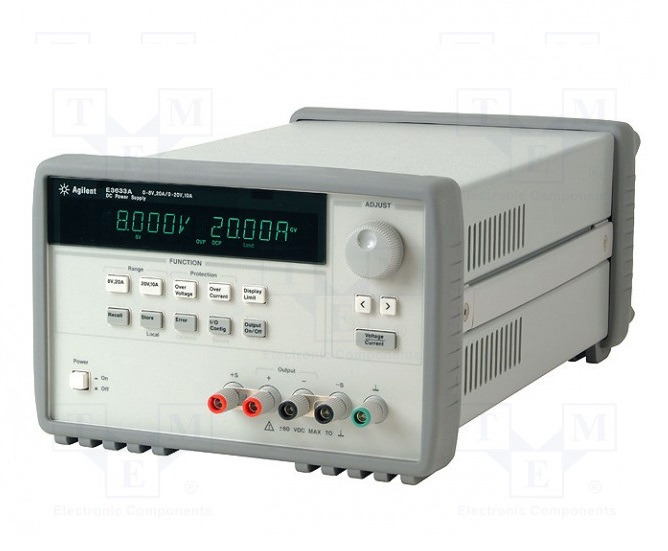

KEYSIGHT E3633A 电源供应器 (8V/20A or 20V/10A)

• Output: Range 1: 0 to 8 V/20 A

  Range 2: 0 to 20 V/10 A

• Load and line regulation: <0.01% + 2 mV, <0.01% + 250 μA

• Accuracy at 25°C ± 5°C:

Programming: 0.05% + 10 mV and 0.2% +10 mA

Readback: 0.05% + 5 mV and 0.15% + 5 mA

• Ripple and noise (20 Hz to 20 MHz):

Voltage: < 350 μVrms/3 mVpp

Current: < 2 mArms

• Power supply: AC 100-230V, 47-63Hz

• Processing time: <100 ms

• Weight: 9.5 kg

• Interface: GPIB and RS232

• Included accessories: Power cord, output voltage wire, instruction manual
